US$1,100.00-5,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
Z5032C Z5040C Z5045C
Structure
Vertical Drilling Machine
Controlling Mode
Artificial
Precision
Normal Precision
Certification
CE, ISO 9001
Product Name
Universal Vertical Drilling Machine Z5032c Z5040c
Transport Package
Plywood Case
Packaging & Delivery
Package Size
185.00cm * 750.00cm * 1000.00cm
Package Gross Weight
430.000kg
Product Description
Universal Vertical Drilling Machine Z5032C Z5040C Z5045C High Quality Metal Vertical Drilling Machine for Sale
Product Description
Main technical Specifications:
ITEM | Z5032C | Z5040C | Z5045C |
Max.drilling capacity | 32mm | 40mm | 45mm |
Spindle taper | M.T.3 or R8 | M.T.4 | M.T.4 |
Spindle travel | 130mm | 130mm | 130mm |
Step of spindle speed | 6 | 6 | 6 |
Range of spindle speed 50Hz | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
60Hz | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
Min.distance from spindle axis to column | 283mm | 283mm | 283mm |
Max.distance from spindle nose to worktable | 700mm | 700mm | 700mm |
Max.distance from spindle nose to stand table | 1125mm | 1125mm | 1125mm |
of headstock | 250mm | 250mm | 250mm |
Swivel angle of headstock(horizontal /perpendicular) | 360°/±90° | 360°/±90° | 360°/±90° |
of worktable bracket | 600mm | 600mm | 600mm |
Table size | 730×210mm | 730×210mm | 730×210mm |
Size of stand worktable of availability | 417×416mm | 417×416mm | 417×416mm |
Forward and afterward travel of worktable | 205mm | 205mm | 205mm |
Left and right travel of worktable | 500mm | 500mm | 500mm |
Vertical travel of worktable | 570mm | 570mm | 570mm |
Motor Power | 1.1kw | 1.1kw | 1.5kw |
speed of motor | 1400rpm | 1400rpm | 1400rpm |
Net weight/Gross weight | 430/500kg | 432/502kg | 435/505kg |
Packing size | 1850x750x1000mm | 1850x750x1000mm | 1850x750x1000mm |

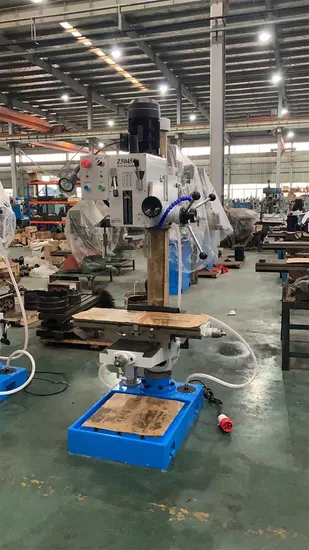

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
>>
