Excellent Production Series High Speed Plate Drilling Machine

US$49,000.00
1-4 Sets
US$48,800.00
5-9 Sets
US$48,600.00
10+ Sets

Basic Info.

Model NO.
PSD cnc drilling machine
Structure
Bench Drilling Machine
Layout
Horizontal
Controlling Mode
CNC
Number of Shaft
1
Hole Diameter
50mm/63mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max Stack Thickness
200mm
Function
Drilling Machining
Machine Type
Drilling Equipment
Workpiece Size
2000*1600*200
Tapping Dia.
M30
Servo Motor Power
2*2kw
Spindle Motor Power
11/15/22/25
Maxium Stoke
400mm
Transport Package
Packages
Specification
4*2.7*2.5m
Trademark
RAINTECH
Origin
China
HS Code
8462490000
Production Capacity
100 Sets/Month

Packaging & Delivery

Package Size
160.00cm * 150.00cm * 150.00cm
Package Gross Weight
120.000kg

Product Description

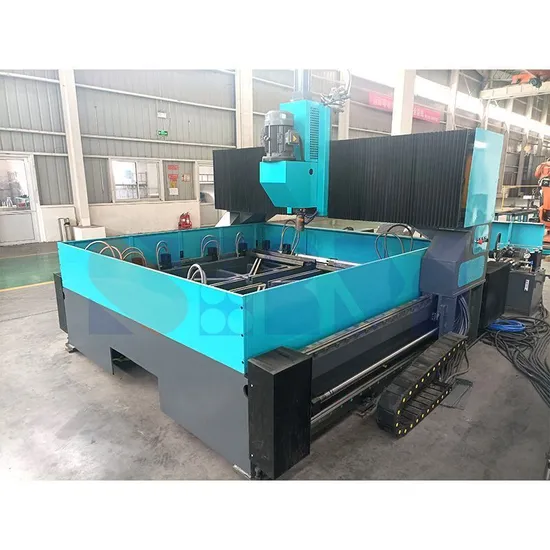

Excellent Production Series High Speed plate drilling machine
Product Description
Product Parameters
Model PSD2016 PSD2020 PSD3016 PSD4030
Workpiece size
LengthxWidth(mm) 2000*1600 2000*2000 3000*1600 4000*3000
Max stack Thickness(mm) 200
Sliding CNC
power head
Spindle taper hole BT50
Drilling diameter (mm) Ф50 (Optional Ф63)
Tapping diameter (mm) M30
Spindle speed (rpm) 30-3000(frequency conversion stepless)
Spindle motor power (KW) 11/15/22/25
Torque (n<600r/min) 190/240/360Nm
Spindle surface to
worktable distance (mm)
230-630
Longitudinal
movement of
gantry(Xaxis)
Maximum stroke (mm)
PSD2016:2000 PSD2020:2000 PSD3016:3000 PSD4030:4000
Servo motor power (KW) 2*2
Maximum moving speed
(m/min)
10
Power head
vertical movement
(Zaxis)
Maximum moving speed(m/min) 8
Servo motor power (KW) 2
Maximum stroke (mm) 400

Product Application
PSD Series machine is mainly used for drilling and milling of connection plates and anchor plates in steel structures, iron towers, bridges, machining and other industries. Drilling and milling of tube sheets, baffles and flanges in pan frying, petrochemical, pressure vessel and other industries; it can drill through holes, blind holes, stepped holes, hole end chamfering and light milling.

Feedback from our customers

certificate and patents
Company Profile

Shandong Raintech Sans Technology Co., Ltd. is a high-tech enterprise that integrates product development, designing, production, sales and service in metal roll forming and coils processing industry.
Our Products :including various kind of metal profile roll forming machines, such as solar strut panel roll forming machine, automobile bumper roll forming machine, green house structure roll forming machine, truck beam roll forming machine, highway crash barrier roll forming machine, etc. Tube mills and coils slitting line, cut to length line
Our History: Our factory established in 2008 by one of our company founder Mr. Xu, who was as leader of china roll forming technology research team in SINOMRCH more than 10 years. Since 2008, we started design , engineering and manufacturing of all kinds of roll forming lines, including many difficult lines at same level of world advance technology. At the same time, we also design and produce cut to length line, slitting line and tube mills on the high level quality in china.
Our Technical Strength : We have advance and earliest technology on metal forming and processing . Since 2008, have been succeed in many difficult lines which require high precision, high speed, and big strength used in railway, highway, metro system, electrode plate,solar structure , automobile etc. We have our special design on machine structure and rollers design, punching and cutting design to assure the speed , accuracy and life of machine. We are coincidental for bigger challenge in future on keep advanced in this field
Our Team :
We own an professional oversea marketing team leads by our CEO Ms. Rain
Main technical support team lead by Mr.Xu and after-sales service team with engineers.
We also have local service team in some countries all over the world
Our Service : We provide complete process on quality control, machine trial , TUV, SGS BV inspection before dispatch. And provide free installation and training at customer site. And moreover, we have our own professional local service team in some countries such as India, Egypt , Italy etc.
Our Goal : we have been devoted to the more advance technology in metal roll forming and processing field , trying our best to be the first level of roll forming technology in the world famous manufacture list
package payment and shipping

FAQ

1. What's your advantage ?
A: We assure each machine dispatched from our factory a long-life usage with easy operation and humane design.We consider help our customer to hence the production efficiency and save your human power as our aim.
2. What about the warranty of your products?
A: We provide 12 months warranty since the machine arrived at customer site , free charge of spare parts and oline maintenance service.
3. Where are you? Can l visit you?
A: our factory located in Shandong province, china, welcome to visit us at any time.
4. How about the delivery time?
A: For standard model, the delivery usually 25 days since the advance payment receipt. For the customized products, the delivery time will follow our agreement with customer.We never receive any complain from our customers for the delivery time.
5. What kind of payment does your company support?
A: TT,100% LIC at sight,Cash, Western Union are accepted. If you have other payment terms, welcome discuss with us.
