120kg-300kg Capacity Customized SMP400 SMP500 Model PVC Plastic Waste Pipe/Profile Scraps Grinding/Milling Pulverizer Machine/Equipment

Product Description

Product Description
PVC powder grinding machine
SMP Milling machine
Waste plastic grinder
Applications
SMP series Plastic Mill is a prefect machine for processing and grinding thermoplastics material, such as PVC, PE, PP, EVA, PLA, ABS etc, with high output and thin powder.
The SMP series automatic plastic grinding mill is disc-type plastic grinding mill series, which has the advantages of high-yield and low-power.
Characteristics
The new disc design is used, high-yield, strong resistance and the life of this grinding disc is double the ordinary.
The use of newly designed professional bearings, and reach a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time and operation of machinery and control engineering.
Installation and maintenance easy, open the door to cover clean-up.
Milling process of the whole seal, without dust leakage.
Full automatic feeding, the materials and sorting.
Grinding gap adjustment is simple, just use the plug-foot bolts and adjustments can be fine-tuning (10-120 mesh).
The host used the water and wind double system; Rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface. Material entered the grinding chamber as soon as caught, groud, and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production.

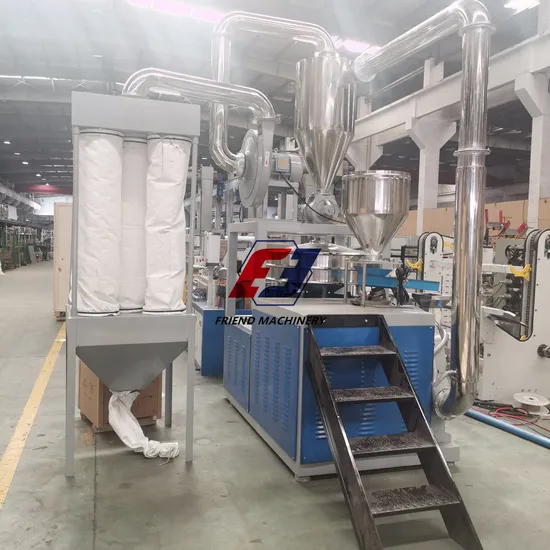

Detailed Photos
Final product

Product Parameters

No	Item	SMP-400	SMP-500	SMP-600
1	Main motor power	30KW	37KW	45kw
2	Capacity (PVC 30-80mesh)	100-120kg/h	200-250kg/h	250-380kg/h
3	Material of conveying pipe	Stainless steel	Stainless steel	Stainless steel
4	Total weight(kg)	1000	1200	1800

Packaging & Shipping
Company Profile
Our Advantages
FAQ
Q1: If I need more information, how to contact you?
Send me your demands, we will send back detailed machine specifications with working video.
Q2: How to buy your machine?
We send detailed machine quotation to you, if you are satisfied, we will make Proforma invoice for you, payment terms: 30% deposit, after machine testing good, 70% before shipment.
Q3: What about warrenty?
In some countries, we have agent and one year warrenty.
Q4: How can I believe your factory and company?
You are welcomed to ask authority to visit our factory and machine, we are real factory.
Q5: Do you have other service?
We can send engineer to your factory to install the machine and offer training. Each year, if we have machines technical improvements, we will inform clients.
Q6:Where is your factory located?
Our factory is in Zhangjiagang City which is nearby shanghai port, about 2 hours car driving, if you want to visit our factory, we can pick you up from airport or train station.

---
