New Original LCD 20s401da2 Vacuum Fluorescent VFD Module Display 4*20 Character

Product Description

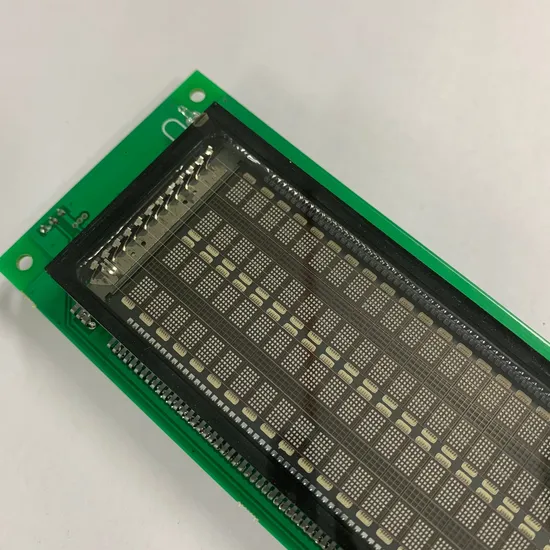

NEW ORIGINAL LCD 20S401DA2 Vacuum fluorescent VFD module display 4*20 character
PRODUCT DESCRIPTION
1. SCOPE
This specification applies to VFD module (Model No: 20S401DA1) manufactured by SSVD (Shanghai Samsung V acuum
Devices)
2. FEATURES
* Vacuum Fluorescent Display: Self Luminous, High Quality and Readable Display
* +5VDC Single Power Supply: Built in DC/DC Converter
* Both Parallel and Serial Interface: Baud-rate: 300 ~ 19,200 bps, Parity Selectable (non, even, odd)
* Two kinds of CG- ROM Font: ASCII + Japanese and ASCII + European
* 4 Brightness Level: 25%, 50%, 75% and 100%
* Character Format: 5*7 Dot Matrix

Item	Description
Product Name	4X20dots VFD LCD Module
Model No.	RY20S401DA1
Dot Format	4x20
Outline (mm)	150.0* 64.0 * 28.6
Glass Size(mm)	118.2 *48.3
Display Area( mm)	89. 52 * 33.07
Character Format	5 * 7 Dot Matrix
Number of Digits	80 (4 lines * 20 characters)
Backlight	LED backlight
Power supply	5V

OUR SERVICE ADVANTAGES
1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. Each order will have 0.2%-0.5% spare.
4. Even customers do not have a cooperation with us, we also can provide technical services.
5. If mass production has any quality problem, customer can return it.
ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
WARRANTY
Royal Display offers the original purchaser who has purchased a product from the lcdmoduletft a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship. FAQ

1.Q: Are you manufactory or trade company? We are factory located in Dongguan. 2.Q: How can I get the samples? A: Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect 3.Q: How long can I expect to get the sample? A:Contour drawing: 2-3 days Sample time: 10-15 business days 4.Q:Will you offer free sample? A: Yes, we usually provide 1-3 pcs free samples, you just need to pay the tooling charge. 5.Q: Can you design the lcd in acccordance with our demand? A:Sure.We will give you the best tooling charge. 6.Q:How to place orders ? A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China. 7.Q:How long of mass production ? A: 25-30 business days. It depends on different order quantities and part number.

---
