Water Treatment Industrial Sludge Dewatering Methods System Filter Press

Product Description

Water Treatment Industrial Sludge Dewatering Methods System Filter Press What is a Membrane Filter Press?
A membrane filter press is a very effective tool intended to separate solids and liquids (dewatering) using pressure driven by feed pumps. After the cake is formed, the membrane plate will be injected with compressed air or high-pressure water, thus the membrane filter plate will be swelled to squeeze the filter cakes again, thus additionally decreasing the cake moisture.
Features of Membrane Filter Press:
1. Secondary squeezing ensures the lowest residual moisture.
2. Short working cycle and high efficiency.
3. Big capacity. Unique plate design makes filtrate discharge more smoothly to make higher processing capacity.
4. Good filtering performance. Our filter press can endure higher feeding pressure, so that get the lowest cake moisture.
5. Low running cost. According to CE standards, our filter press has a remarkable performance to decrease the running cost.

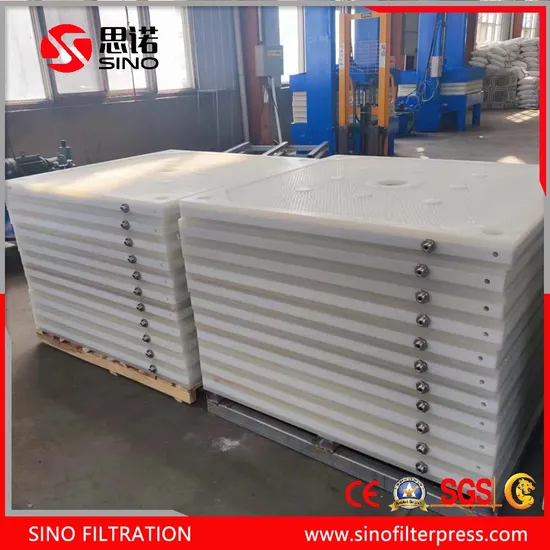

6. Filter plates are made of reinforced polypropylene with features of high strength, corrosion resistance, nontoxic and odorless.
7. According to your material we will recommend a special filter cloth, which can improve the filtering accuracy and efficiency.
8. Main beam material is Q235B/Q345B, with sandblasting processing.
9. Hydraulic station adopts ABB motor ensure stable performance.
10. Hydraulic squeezing ensures no leakage to avoid secondary pollution.
11. Cabinet elements adopts international famous brands: Siemens etc.
Our Membrane Filter Press Plant:
Specifications of Membrane Filter Press Machine:

Model	Filter Area (m2)	Plate Size (mm)	Volume (L)	Plate QTY (pcs)	Pressure (MPa)	Power (Kw)	Dimensions (mm)
XMGZ 30/870	30	870*870	427	23	Feeding: ≤1 MPa, Squeezing: ≤1.5 MPa	4	3880*1250*1300
XMGZ 40/870	40		534	29			4270*1250*1300
XMGZ 50/870	50		676	37			4790*1250*1300
XMGZ 60/870	60		818	45			5310*1250*1300
XMGZ 70/870	70		960	53			5830*1250*1300
XMGZ 80/870	80		1103	61			6350*1250*1300
XMGZ 50/1000	50	1000*1000	665	27		4	4270*1500*1400
XMGZ 60/1000	60		808	33			4700*1500*1400
XMGZ 70/1000	70		950	39			5130*1500*1400
XMGZ 80/1000	80		1093	45			5560*1500*1400
XMGZ 100/1000	100		1378	57			6410*1500*1400
XMGZ 120/1000	120		1663	69			7260*1500*1400
XMGZ 80/1250	80	1250*1250	1364	29		5.5	4830*1800*1600
XMGZ 100/1250	100		1680	37			5440*1800*1600
XMGZ 120/1250	120		2092	45			6060*1800*1600
XMGZ 140/1250	150		2547	55			6820*1800*1600
XMGZ 160/1250	160		2729	59			7130*1800*1600
XMGZ 180/1250	200		3457	73			8200*1800*1600
XMGZ 200/1250	240		4093	89			9420*1800*1600
XMGZ 250/1250	250		4276	91			9570*1800*1600
XMGZ 200/1500	200	1500*1500	3866	49		11	7140*2200*1820
XMGZ 250/1500	250		4399	61			7730*2200*1820
XMGZ 300/1500	300		5199	73			8720*2200*1820
XMGZ 350/1500	350		6132	85			10110*2200*1820
XMGZ 400/1500	400		6932	99			11260*2200*1820
XMGZ 450/1500	450		7731	111			12250*2200*1820
XMGZ 500/1500	500		8665	123			13240*2200*1820
XMGZ 500/1999	500	2000*2000	9686	69		15	10310*2850*2400
XMGZ 600/2000	600		11900	85			11580*2850*2400
XMGZ 700/2000	700		13838	99			12740*2850*2400
XMGZ 800/2000	800		15775	113			14100*2850*2400
XMGZ 900/2000	900		17851	128			15365*2850*2400
XMGZ 1000/2000	1000		19788	141			16625*2850*2400

Applications of Membrane Filter Press Machine:
1. Various wastewater Treatment
2. Chemicals
3. Mines (Concentrates/Tailing)
4. Metallurgy
5. Pharmacy
6. Food
7. Non-Metallic mines
8. Various clay/mud/slurry
Packaging & Delivery of Membrane Plate Filter Press:
1. Delivery: around 3 weeks.
2. Packing: The packing is seaworthy packing: The filter press will be packed with plastic film to avoid water. The hydraulic station and cabinet will be packed in wooden cases. If you need the entire wooden case please inform us in advance.
After-sales Service of Membrane Plate Filter:
1. Documents supplied: Foundation/Circuit Diagram/Filter Cloth (or Filter Plate).
2. Site commissioning, installation, and training service are valid.
3. Warranty: 1 Year after B/L data.
