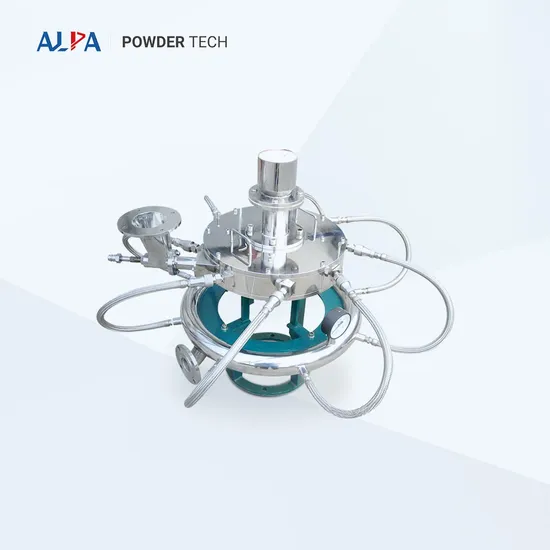

Ultrafine Particle Size 1.5um-45um Powder Grinding Spiral / Disc Jet Mill

Product Description

Spiral Jet Mill On-line cleaning (CIP) and on-line sterilization(SIP)design is optional.
FEATURES AND ADVANTAGES
Available particle size D50:1.5-45μm, mostly suitable for depolymerization. Many nozzles are installed for high grinding efficiency Free of transmission parts, automatic classifying structure. Good particle shape, narrow particle size distribution. The jet mill is suitable for dry grinding of various materials with Moh's hardness below 9, especially for the materials with high hardness, high purity and high added value. Constant temperature or low temperature, medium-free grinding,especially suitable for materials of heat sensitive, low melting point, sugary, volatile nature. The grinding process is completed by the collision of the materials themselves., Fully self-grinding, So The device is durable and the purity of products is high in contrast. Key parts like inner liner, classifying wheel and nozzle are made of ceramic such as aluminum oxide, zirconium oxide or silicon carbide, ensuring non-contact with metal throughout the grinding for high purity of the final product. No residual material, achieve explosion-proof design, no safety hazards, cleaning is very simple, easy to disassemble and replace parts. Grinding is in closed system, low dust and noise, clean and environmentally friendly production process. PLC control system, easy operation. Optional explosion-proof design, can also be upgraded to nitrogen circulation system to meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials WORKING PRINCIPLE

MQP Spiral Jet Mill(Disc Jet Mill) works with cyclone separator, dust collector and suction fan to form a complete grinding
system.
Compressed air flow after filtration and drying would go into milling chamber from nozzles, and meet in the center area, where material would be impacted and ground and sheared.
Milled powder would go up to the classifying chamber by the air flow from suction fan.
The high-speed rotation of classifier wheel would create a strong centrifugal force to separate coarse powder and fine powder.
Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.
Technical Parameters

Parameters/ specifications	MQP03	MQP06	MQP10	MQP20	MQP40	MQP60	MQP80
Feed Size (mm)	<5	<5	<5	<5	<5	<5	<5
Product Size (d97:um)	8~150	8~150	8~150	8~150	10~150	10~150	10~150
Production Capacity (kg/h)	5~100	10~200	20~400	50~800	150~1500	300~2000	400~6000
Air consumption (m3/min)	3	6	10	20	40	60	80
Air Pressure (Mpa)	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85
Installed Power (kw)	26~37	47~68	68~106	145~184	276~310	402~427	520~600

Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
Related Engineering Cases
Shandong ALPA Powder Technology Co., Ltd. (abbreviation: ALPA / Equity Code: 171033) THE WORLD'S LEADING SUPPLIER OF
ULTRA-FINE POWDER SOLUTIONS
ALPA is a world-renowned supplier of powder processing systems, committed to traditional powder industry development. For 20 years, focused on the research and development of dry grinding, classification, powder shaping, surface modification and provided systematic solutions. We provide customized and international certified products: Jet Mill, Air Classifying Mill, Classifier, Ball Mill and Classifying production line, powder surface modification production line, etc. ALPA has expert team that composed of more than 10 scientific research experts and more than 40 R&D engineers in the ultrafine powder industry. Most of these experts enjoy special government allowances and have published many influential technical papers in domestic and foreign powder industry journals.
Certification Authority
ALPA is one of the earliest companies in the industry that passed the ISO9001 quality management system authority certification. At the same time, ALPA has free import and export rights, and has obtained CE certification for export to the European Union and GOST certification for export to Russia. The machine design used in the medical industry fully meets the requirements of GMP certification.
Good After-sales Service
Our after-sales service team is always ready to diagnose and solve problems for you
WHO CHOOSE US 37 world top 500 companies, 89 Chinese top 500 companies, 169 national key laboratories and engineering technology research centers have selected ALPA. More than 3,000 customers have chosen us
About Our Equipment
ALPA can provide dry ultrafine grinding equipment suitable for various materials Impact mill
High efficiency, has two milling effects of impact and grind, large milling ratio, simple structure, stable operation, suitable for milling medium-soft hard materials.
Jet mill
Uses the high speed turbulence airflow generated by compressed air or superheated steam as milling power. Impact extrusion, friction and shear between the particles or between the particles and the fixed plate occur, so as to achieve milling.
Ball mill + Classifying
The ball mill and classification production line refers to a complete set of milling system composed of Ball mill, cyclone, dust collector and fan.
Q: What service do you supply?
A: 1). We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc. 2). We supplysample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process. 3). We supply project engineering, automation engineering and civil engineering. 4). We send engineers to the clients' project site andoffer on-site technical instruction and supervision during the machine installation, commissioning and test run. Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment. 2). We supply one year warranty for all equipment and lifelong after-sales service. 3). We cantest your material in our equipment before place the order, to ensure our equipment is suitable for your project. 4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products. Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers. Q:How to train our staff about operation and maintenance?
A: We will providedetailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.

---
