Manual DIY Full Set 6 Color 6 Station T-Shirt Silk Screen Printing Machine Kit All Stuff Including

Product Description

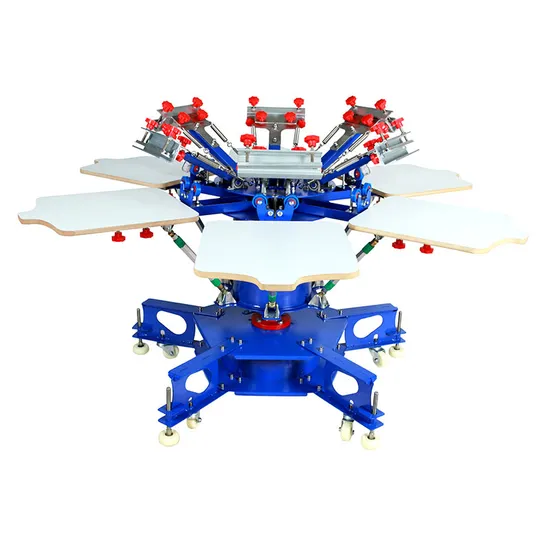

MK-F662E Floor Type 6 Color 6 Station Double Wheel Screen Printing Machine

Product Code	MK-070006
Product Name	MK-F662E floor type six color six station double wheel screen printing machine
HS code	8443192290
Product Color	blue
Printing Area	22*18in
Machine using material	steel plate
Machine Welding Technology	Welding mainly
Machine surface treatment	Electrostatic spraying
Important components	Aluminum profile
Attachment material	Stainless steel or zinc plating, nickel plating
Packing quantity	1
Net weight	344lb
Gross weight	432lb
Packing size	43.3*33.8*25.2in
Packing volume	0.61m³
Packing material	Export wooden box

The frame chuck part and the platen part can be rotated 360 degrees freely; the operator can operate in any position or any platen station.
Each frame fixing device is equipped with two knobs that can adjust the front, back, left and right of the screen to make the color registration easier,faster and more accurate.Two handles are arranged behind the frame clamp, and the two handle knobs are slightly loosened before the screen .is set to the standard, and the front, back,left and right adjustments can be made to .the screen, after the color of the standard
is over,Tighten the two knobs.
Each frame fixing device is equipped with a precise positioning card wheel,and the positioning card iron on the frame arm is placed close to the positioning card wheel. Ensure that the printing is accurate without deviation.
Each frame fixing device is equipped with a clamp height positioning adjustable knob for adjusting the height of the chuck after it is lowered.
The silk screen frame clamp can adjust the spring tension by screws according .to the weight of the frame to achieve the most suitable balance pull-out tension.
The platen can be moved back and forth through the bottom connector.
The hex support rods with adjustable reinforcement are installed on the lower part of each platen. The user can rotate the hex support rods to strengthen the stability of the platen and adjust the parallelism to ensure the platen is more accurate.
Screen printing chuck can be adjusted up to 5cm (2 in) according to the height of substrates.
The T-shirt type platen of this machine is 55 cm (22 in) long, 45 cm (18 in) wide and 1.8 cm (0.7 in) thick. It is made of melamine high-density furniture board with a fine surface.

---
