Product Details
Product Description
Product Description

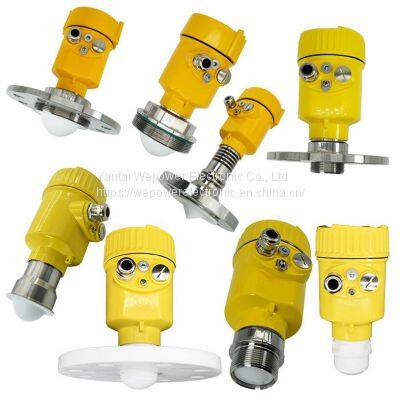

Various radar type level transmitter emits and then receives the reflected 80GHz frequency to detect the level of the object level. 80GHz radar level transmitter is a product different from guided wave radar level transmitter. 80GHz radar type level transmitters can achieve very good measurement results without touching sensitive substances.
Wepower Electronic radar level meter is user-friendly. 80GHz radar type level transmitter serves a variety of customers, in order to simplify the customer's operation problems, We support OEM service and will make your own radar level transmitter for you.
Radar level transmitters are a popular model worldwide. Wepower Electronic is a professional radar level transmitter supplier and has been committed to this field since 2004.
Wepower radar type level transmitter benefits:
► Pre-calibrared
► Maintenance-free
► Stable and efficient radar antenna
► Perfect combination with PLC systems
Radar type level transmitter technical parameters:
Name
| Radar type Level Transmitter
|
Model
| WERD- 90
|
Medium
| Liquid
|
Antenna Type
| PTFE; Lens(76mm)
|
Measure Range
| 0-150m
|
Mounting
| Thread / Flange
|
Accuracy
| ±2mm
|
Response time
| 0.6s (due to parameter setting)
|
Display
| LCD display
|
Beam angle
| 7-8°
|
Microwave frequency
| 76-81 GHz,5GHz FMCW bandwidth
|
Output signal *
| 4-20mA +HART, RS485 MODBUS -RTU
|
Power supply *
| DC 6-24V, AC 220V/50Hz
|
Material
| Shell: aluminum, process connection: 304 stainless steel,
|
Pressure
| up to 2MPa
|
Storage temperature
| -40~+120℃
|
Protection class
| IP67
|
Warranty
| 12 months
|
>>
