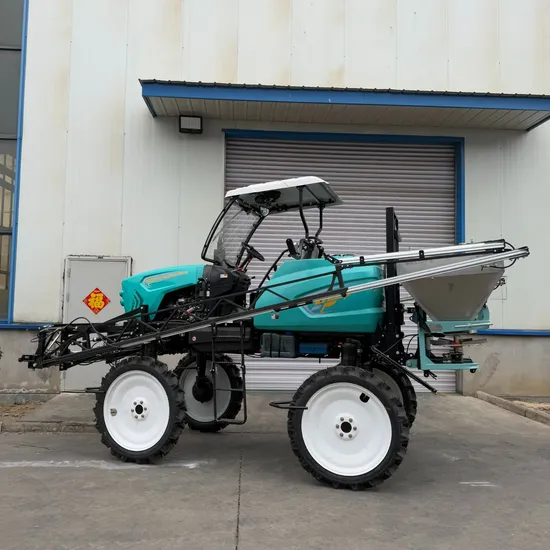

600L Self-Propelled Boom Sprayer with Advanced Precision and Efficiency Features

Product Description

Product Description:
The company has cultivated plant protection machinery for more than 10 years, has a professional technical team, and has developed and produced a number of products through the national 3C certification, and obtained a number of technical patents.
Suitable for wheat. rice, corn, cotton, rapeseed, tea tree, planting seedlings and vegetables, sugar cane and other crops during different growth period for insecticides, fungicides, herbicides and defoliants ripening, can-sugar promoter, foliar fertilizers

Project name		Specification parameters		Item name	Specification parameters
Overall size	Overall dimensions (mm)	4350*2400*2960	Powertrain	Engine power (kw/r/min)	14.7
	Ground clearance (mm)	940		Battery capacity	24V45AH
	Spray length (mm)	9000-12000	Walking system	Weight of the whole machine (Kg)	1200
	Spray rod lift (mm)	200-1600		Drive	Four-wheel drive
	Wheel base (mm)	1345/1540 Adjustable/fix		Steering	Two wheel,four-wheel
	Wheelbase (mm)	2030		Gearbox	Rear 3, front-1,High and low speed gearbox.
	Cab	Adjustable		Brakes	Drum Brake
Spray system	Spray rod position	Front		Tires	Pneumatic
	Spray rod material	Steel pipe		Tire diameter (mm)	940
	Number of spray bodies (each)	20		Tire width (mm)	120
	Medicine cabinet Volume (L)	600		Turning radius (mm)	Inside 3200mm, outside 5800mm
	Working pressure (Mpa)	2.0-3.5		Drive mode	mechanical drive
	Drug pump flow (L/min)	25-35		Walking speed (km/h)	Low 3-speed:1.1/2.6/3.6; High 3-speed :4/7/12
	Medicated liquid stirring	Reflux	Work benefit	Application efficiency	Arid land 2-3hec/h
	Medicine pump construction	3-cylinder plunger pump		Topdressing efficiency	Arid land 2-3hec/h
	Medicine pump drive	Hydraulic drive		Fuel consumption (L/h)	1.5-2L/h

WORKSHOP:
Exhibition :
FAQ:
Q: how can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment
Q: what can you buy from us?
A: We have the most complete range of agricultural machinery spraying accessories in the industry, as well as various types of spraying machines
Q: What's your delivery time?
A: Normally about 15-30days after got your deposit.
Q: what services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF;

---
