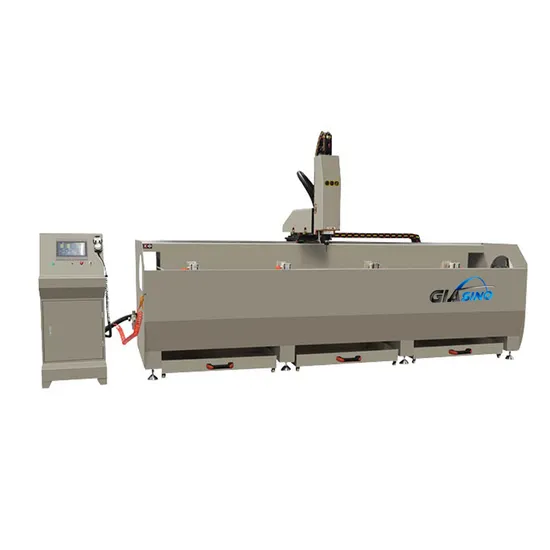

Aluminum/UPVC/PVC Automatic CNC Door Lock Hole Profile Drilling Milling Aluminum Window Machine

Product Description

Product Description
Aluminum/UPVC/PVC Automatic CNC Door Lock Hole Profile Drilling Milling Aluminum Window Machine
Equipment Features for cnc door lock hole window aluminum profile cnc drilling milling machine:
1. Glasino CNC high-speed drilling and milling center is suitable for aluminum doors and windows and curtain wall
installation hole, water tank, and the keyhole shaped hole, tapping and end milling.
2. Using the German PA control system, the intelligent CNC system and the simple and intuitive human-computer
interface make the operation more convenient and quick.
3. Inside blades storage can hold 6-8 sets blade.
4. 1200mm/3000mm/3200mm/3500mm/4000mm Workbench can turn 180°, -90°~0 °~+90°; It can realize three-sides
processingby clamping one time; it can process deep and special-shaped holes through workbench; high efficiency
and precision.
Detailed Photos
Details of cnc door lock hole window aluminum profile cnc drilling milling machine:
6 blades(8 blades optional) auto tool change magazine
High efficiency of automatic blade changing. The max diameter is 16mm, the min diameter is 4mm, it could
process the profile of 20mm.
Working samples of cnc door lock hole window aluminum profile cnc drilling milling machine:
Product Parameters

Model	CNC-3200/3500/4000/6000
In put power	380V50HZ
Total Power	11KW
Max rotary speed	8000-18000r/min
Spindle Power	HSD 9KW
Processing range	200*320mm
Servo driver and motor	Japan Yaskawa or Taiwan
Linear guide ral	Taiwan
X-axis Journey	3200MM
Y-axis Journey	500MM
Z-axis Journey	350MM
Overall dimension	About 4150*1650*2200mm

Packaging & Shipping
Product packaging
Workshop Showing
Exhibition
FAQ
1.Are you a factory or a trading company?
We are factory
2. How long is the equipment warranty?
One year.
3. How to provide after-sales service?
Provide on-site installation, commissioning and training.Free accessories within one year. Provide remote
service and video guidance.
4. How long is the delivery time?
10-20days after receive the deposit.

---
