Vertical and Horizontal Cutting with Pege Rubber Strip Cutter

Product Description

Unveil the astounding prowess of our Rubber Cutter Machine, meticulously engineered for unmatched precision in rubber strip cutting. Experience efficiency like never before as you achieve flawless results effortlessly.

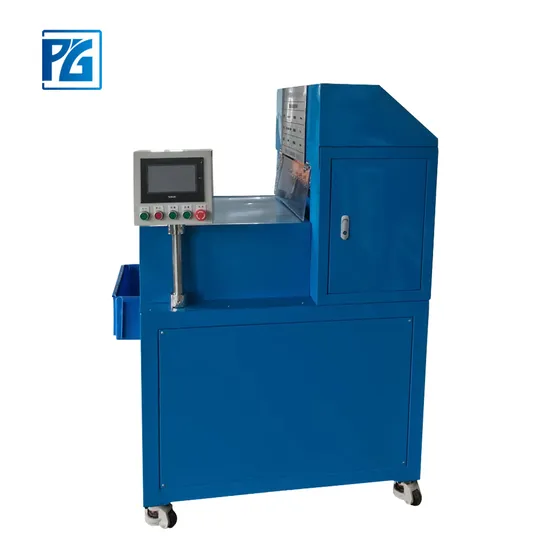

Machine Picture
Main Features The Numerical Rubber Cutting Machine is masterfully equipped with a reputable brand PLC, delivering impeccable precision and rapid response times for superior performance. Our cutting-edge feeding system maximizes accuracy with a top-tier branded servo motor. Renowned for its precision, stability, and longevity, it boasts a feeding accuracy of ±0.1mm and, for lengths under 20mm, a weighing precision of ±0.2g, ensuring excellence in every cut. Harnessing the power of a robust 3-phase slowdown brake motor, our machine offers unparalleled power coupled with enhanced safety features. Enhanced with imported fiber sense positioning components, our machine ensures incredible durability and precision, making it a reliable choice for your cutting needs. Employing a chain belt system, the machine smoothly slices through FKM sheets with hardness ratings up to 90ºC with absolute ease and efficiency. A user-friendly 7-inch HMI touch screen provides automatic counting, monitoring, and warning notifications, ensuring seamless operation with unparalleled convenience. Optimize your workflow with a brand inverter controlling the cutting speed, allowing for direct and precise adjustments to boost efficiency. Our safety door device at the strip outlet employs a robust two-step protection method for the highest operational safety assurance. Benefit from the automatic material press system that significantly reduces operator workload while enhancing operational convenience. Fitted with Tungsten steel W18 blades, the cutting blade offers exceptional durability, ensuring a long-lasting cutting life that stands the test of time. The innovative bevel cut design of the blade minimizes resistance, enhances speed, and, with precisely cooperating upper and lower blades, significantly reduces abrasion. Customize all models with slitting cutters for both horizontal and vertical rubber sheet cuts. The slitter cutter blades are ingeniously designed for effortless replacement and maintenance.. The sophisticated oil lubricant system employs an automatic electromagnetic pump, which minimizes interruptions and seamlessly refills oil to maintain peak performance. Our revolutionary design and cutting-edge manufacturing make the CNC rubber cutting machine not only user-friendly but also exceptionally efficient, catering to all your needs.Easily adjust length or cutting speed on-the-fly via the intuitive touch screen, making your operation smoother and more adaptable than ever before. Product Parameters

Technical Data of Rubber Strip Cutting & Slitting Machine
Model	PG-HA-600	PG-HA-800	PG-HA-1000	PG-HVG-600
Size	1170*1300*1400	1170*1500*1400	1170*1700*1400	1170*1300*1400
Weight	900kg	1100kg	1300kg	900kg
Cutting Direction	Horizontal	Horizontal	Horizontal	Horizontal& Vertical
Cutting width	≤580mm	≤800mm	≤1000mm	≤580mm
Cutting Length	0.1-1000mm	0.1-1000mm	0.1-1000mm	0.1-1000mm
Cutting Thickness	≤30mm	≤30mm	≤30mm	≤30mm
Blade material	Tungsten Steel W18	Tungsten Steel W18	Tungsten Steel W18	Tungsten Steel W18
Feeding mode	Servo motor	Servo motor	Servo motor	Servo motor
Cut Speed	≤80/min	≤80/min	≤80/min	≤80/min
Power supply	4kw 3ph 380v	4kw 3ph 380v	4kw 3ph 380v	4kw 3ph 380v
Speed Control	PLC& Inverter	PLC& Inverter	PLC& Inverter	PLC& Inverter
Operation Mode	Touch Screen	Touch Screen	Touch Screen	Touch Screen

Applications:
Specifically engineered for the precise and swift conversion of rubber sheets into strips, this machine offers unparalleled speed and efficiency, revolutionizing your workflow.
PACKING
SHIPPING

---
