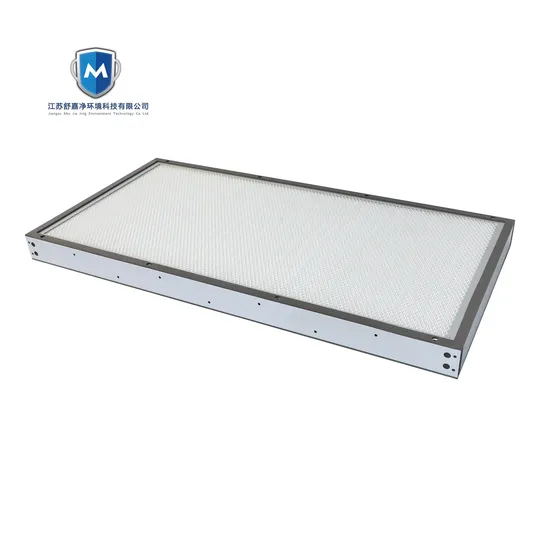

Catc Customized High Efficiency HVAC System 99.999% H14 U15 ULPA Air Conditioner Filter

Product Description

Product Description Our separator type HEPA filters are mainly used in general industry, semiconductor, electronics, pharmaceutical, food processing, laboratory Settings, healthcare and other fields, as the end of the filtration system, effectively remove small particles in the air to ensure safe production.Available in 50mm, 75mm, 100mm,150mm,292mm depths.The dimensions can be customized according to the requirements.With gasket, or with gel sealing can be choosed.Microfine glass media with hot-melt adhesive separator allow high filteration area with lower pressure drop.95% at 0.3µm to 99.99995%at 0.12µm at most penetrating particle size (MPPS). Features-Multiple frame materials to choose from: aluminum, galvanized iron, stainless steel to meet the needs of different industries, environments, and costs.
-Multiple frame thicknesses to choose from: 50mm, 75mm, 100mm, 150mm, 292mm, to meet different customer needs.
-High filtration efficiency and reliable product quality: According to strict EN1822 standards, H13 achieved a significant level of 99.95% in the most penetrating particle size (MPPS), while H14 achieved an impressive 99.995%
-No leakage detection: Each product undergoes smoke leakage detection before leaving the factory, Detailed Photos
Product Parameters

Nominal size W×H×D ( in.)	Actual size W×H×D ( mm)	Filter Rating (EN779:2012)	Air flow (m³/h)	InitialP.D. (Pa)	Recommended Final P.D.(Pa)
12×24×12	305×610×292	H11	1700	250	≤500
12×24×6	610×610×150		1630
24×24×12	610×610×292		3400
12×24×12	305×610×292	H13	1700	350
12×24×6	610×610×150		1630
24×24×12	610×610×292		3400
12×24×12	305×610×292	H14	1700	350
12×24×6	610×610×150		1630
24×24×12	610×610×292		3400
★ 50mm,75mm,100mm thickness are also available. Other sizes and air flow are available on request.

Certifications
Packaging & Shipping
Company Profile Shujiajing Environmental Technology Co., Ltd., established in 2020 , the company has evolved into a comprehensive large-scale private enterprise, specializing in environmental technology and electromechanical equipment. Our expertise includes technical development and transfer, design and construction of water conservancy and hydropower projects, electromechanical engineering, and water treatment projects. Additionally, we engage in research, processing, and sales of aluminum profiles, hardware products, automation equipment, and accessories (excluding plastic products). Our diverse portfolio also encompasses new materials, electromechanical equipment, electronic components, fiberglass products, construction materials, and environmental protection materials. Our products have gained international recognition, being exported to countries such as South Korea and Vietnam.
After Sales ServiceFAQ
Q1: Do you provide samples?
A2: Yes, free sample can be provided but customer needs to pay for the shipping costs.
Q2: Can the product be customized?
A2: Yes, customized filters are available.
Q3: How long is the delivery time?
A4: It depends on the order quantity. Usually it takes about 7 to 15 working days after receiving your deposit.

---
