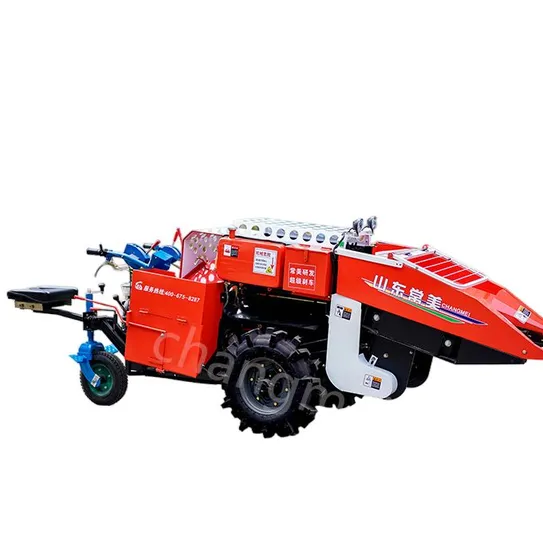

Factory Manufacture 25 HP Single Row Corn Harvester

Product Description

Product Parameters

Project		Unit	Design
Specification Type			CM4YZP-1
Supporting Power	Type specifications		25
	Rated power	kw	18.4
	Rated speed	r/min	2200
	Number of cylinders		1
Dimensions (length * width * height)		mm	3950*910*1460
Quality of use		kg	700
Number of work lines			1
Scope applicable		mm	/
Scope of work		mm	650
Maximum panicle height		mm	/
Maximum height of ear lift		mm	/
Minimum clearance from ground		mm	200
Minimum pass radius	Turn left	mm	/
	Turn right	mm	/
Theoretical Work Speed		km/h	/
Working hours productivity		hm2/h	0.05-0.12
Fuel consumption per unit area		kg/hm2	/
Pulp roller type			Hexagonal
Heading roller type			/
Strip roll type			Spiral rubber roller
Cutter Type			/
Wheel spacing	Front wheels	mm	760
	Rear wheel	mm
Tire specifications	Front wheels		6.00-12
	Rear wheel		/
Type of Straw Cutting Mechanism	Type		Horizontal rotary cutting

Detailed Photos
Other products
Usage Scenario
This corn harvesters are the latest models independently developed by our company, with brand-new appearance design, first-class mechanical drive and hydraulic drive technology, light and comfortable control, which can realize the integrated operation of the whole process of corn harvesting, transportation, peeling, boxing and straw crushing and returning to the field, and can meet the needs of users in different regions.

Our Advantages
We have advanced production line and quality inspection center. Our company has an annual production capacity of 100,000 diesel engines, 50,000 walking tractors, 5,000 corn harvesters and other agricultural machinery.

Company Profile
Shandong Changmei Trading Co., Ltd. belongs to Shandong Changmei Group, is a trade company integrating industry and trade. Main exports: single cylinder diesel engine, walking tractor, corn harvester, micro-cultivator and supporting agricultural machinery products. The products sold are widely used in mining, harvesters, generator sets, ships and other fields. Changmei series products have covered China, and exported to Eastern Europe, Central Asia, Southeast Asia, Africa, South America and other countries. The factory covers an area of 39,600 square meters and has 200 employees.
The factory has a professional production line and quality testing center, with an annual output of 100,000 single-cylinder diesel engines, 50,000 walking tractors and 5,000 corn harvesters. The company has passed ISO9001 quality system, ISO14001 environmental management system, ISO14000 occupational health and safety management system certification, has a number of utility model patent certificates and invention patent certificates, is a well-known brand of diesel engine in China.
Survival by quality, development by reputation.Changmei always adhere to the quality first, customer first service purpose, and constantly improve the level of production technology, and strive to provide high-quality and durable products for global users. Shandong Changmei Group sincerely welcomes businessmen from all over the world to visit the company, work together for common development.
FAQ
Q1: What's the MOQ?A1: One set only.
Q2:What is you deliver time ?A2: 10-25 days after order confirmation.
Q3: Can you provide customized machines?A3: Yes, we can design and manufacture according to your specific requirements.
Q4: Can we visit your factory before order?A4: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed.
Q5: What can I buy from you?
A5:Single cyinder diesel engines, walking tractors, corn harvesters, farm im-plements and any other agricultural machines you need.
Q6. What is your terms of payment?A6: T/T 30% as deposit, and 70% before delivery. We'll show you photos of products and packages before you pay the balance.

---
