New Cable Detector LCD Display /Wire Cable Tracker /Circuit Breaker Locator with CE certificate
product description

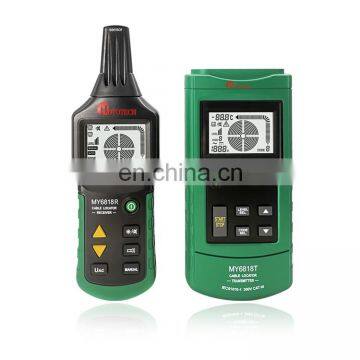

The cable tracker consists of a transmitter and a receiver.
The transmitter provides a modulated AC voltage
The receiver is equipped with a coil.
The coil will generate very little pressure
The receiver's electronic circuitry calculates the voltage and displays it on the display.
application and feature
-Find the Beaks or Shorts in Cable in the wall or Earth
-Track Cables in the wall or Earth
-Find the Fuse and Safeguard
-Find the Beaks or Shorts in Conduit under the Floor
-Track a Metal Conduit in the Project of ware or hot
-Sensitivity of Receiver can be selected
-Auto Ranging,Auto Power Off,Backlight and Worklight
The specifications

Technical Parameter of Receiver		Technical Parameters of Transmitter
Depth of Tracking	The Depth of Tracking Depends on the Material and Specific Applications	Output Signal	125kHz
Cable	Single pole application:about 0~2m	External Voltage	DC12~400V AC12~400V(50~60Hz)±2.5%
Locating	Dual pole application:about 0~0.5m	Fuse	F0.5A 1000V
Mode	Single loop line:Up to 2.5m	MIN Current	about 31mA
MIN Current	About 32mA	MAX Current	about 115mA
MAX Current	About 89mA	In Work	0~40ºC,with max relative humidity of 80%
In Work	0~40ºC,with max relative humidity of 80%	In Storage	-20~60ºC,with max relative humidity of 80%
In Storage	-20~60ºC,with max relative humidity of 80%	Altitude	<2000m
Altitude	<2000m	Product Size	190mm*89mm*42.5/7.48"*3.5"*1.67"
product size	241.5mm*78mm*38.5mm/9.5"*3"*1.5"	Product Weight	420g/0.92lb
product weight	350g/0.77lb	Power Supply	1*9V 6F22 Battery
power supply	6*1.5V AAA Battery
