New Look Blue Elephant 1325 CNC Machines Wood Router, 4X8FT CNC Router Machine for Wood Cabinet Soft Metal Engraving for Sale in Mexico

Product Description

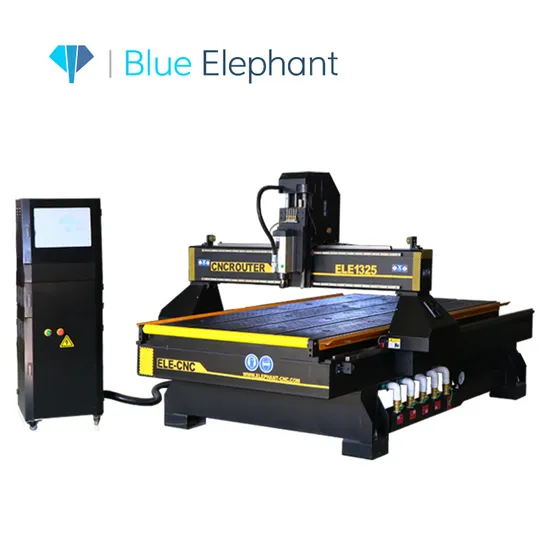

4x8 ft cnc router wood machine with air cooling spindle
Features
1) Heavy duty structure.
2) Original 6kw Italy HSD air cooling spindle.
3) Original Ncstudio PM53C control system with computer control box .
4) The fixed roller is more convenient to load the panel.

Technical Parameters

Description	Parameter
X,Y,Z Working Area	1300x2500x200mm
Table Surface	T-slot & vacuum working table
Spindle	6kw HSD air cooling spindle
X, Y Structure	20#Taiwan HIWIN Linear guide and helical rack
Z Structure	Ball screw and#20 Taiwan HIWIN Linear guide
Motor and driver	750w YASKAWA servo system
Spindle Speed	0-18000RPM
Inverter	7.5kw Taiwan Delta Inverter
Command Language	G Code
Control System	NCStudio 53C control system
Computer Interface	USB
Collet	ER32
X,Y Resolution	<0.01mm
Software Compatibility	Type3 Software, (Option: Artcam Software)
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Optional	5.5kw water cycle vacuum pump 1.5kw New type dust collector

PS:All the working area and specifications can be customized according to your requests.
Sample & Application
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packaging & Delivery
Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment.
Company Introduction
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.

---
