China Professional Manufacturer CE Certificate Nut Tapping Machine for Sale

US$3,324.00
1 Set/Sets
US$3,124.00
2-4 Set/Sets
US$3,024.00
5-7 Set/Sets
US$2,980.00
8-9 Set/Sets
US$2,750.00
10+ Set/Sets

Basic Info.

Model NO.
CX-4508
Controlling Mode
CNC
Number of Shaft
Customized
Hole Diameter
M1-M8mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Auto Customized Nut Tapping Machine
Machine Type
Vertical Bench Table Type Tapping Machine
Application
Tapping for Nuts
Warranty
One Year Warranty
Max Tapping Diameter
M1-M8mm
Advantage 1
Multi-Functional
Advantage 2
High Accuracy
Advantage 3
Competitive Price
Spindle Travel
130mm
Base Size
440*297mm
Brand
Chansin
Transport Package
Plywood Case
Specification
96*70*165cm
Trademark
Trade Mark
Origin
Dongguan, China
HS Code
8459700000
Production Capacity
80 Sets Per Month

Product Description

Product Description

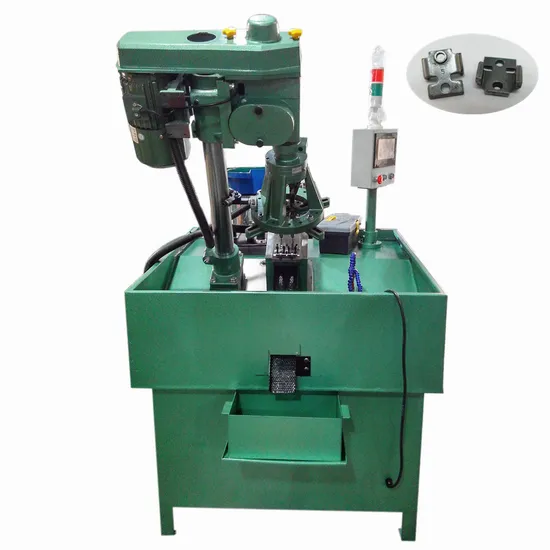

China Professional Manufacturer CE Certificate Nut Tapping Machine For Sale
CX-4508 Parameters

Spindle Travel 45mm
Thread Diameter M1-M8
Head Moving Scope Up and Down 260mm
Distance Spindle Nose to Working Table 350mm
Working Table Size 680*560*670
Base Size 440*297mm
Motor Power 0.75kw
Voltage 220v/380v/415v
Spindle Rotation 50HZ:1340/760/420rpm 60HZ:1600/900/500rpm
Standard Gear Pitch(mm) 0.25,0.3,0.35,0.4,0.45,0.5,0.6,0.7,
0.75,0.8,1.0,1.25
Standard Gear Pitch(inch) 16,18,20,24,28,32,40,44,48,56,64
Weight 170-260kg

Standard Type Drilling Machine
Drilling Machine CX-8510 CX-13016 CX-15035
Maximum Drilling Diameter 10mm 16mm 35mm
Electricity 380V/415/440V 3 Phase 380V/415/440V 3 Phase 380V/415/440V 3 Phase
Spindle to Column Distance 200mm 210mm 250m
Spindle Nose to Work Table 100-330mm 100-350mm 120-420mm
Spindle Speed 1400/2800 rpm 1400/2000 rpm 1000/1400 rpm
Machine Head Travel 280mm 280mm 320mm
Motor Power 0.75kw 1.5kw 2.2kw

Standard Type Tapping Machine
Tapping Machine CX-4508 CX-6516 CX-6516
Tapping Range 1-8mm 2-16mm 5-32mm
Machine Head Travel 260mm 300mm 460mm
Spindle Nose to Work Table 90-350mm 100-350mm 100-600mm
Multi spindle Capacity M2*16,M3*9,M4*5,M5*3,M6*2,M8*1 M4*13,M5*10,M6*7,M8*4,M10*3,M12*2,M16*1 M8*16,M10*10,M12*7,M14*6,M16*4,M18*3,M20*3,M32*1
Motor Power 0.75kw 1.5kw 2.2kw
Electricity 380V/415/440V 3 Phase 380V/415/440V 3 Phase 380V/415/440V 3 Phase
Spindle Stroke 45mm 65mm 65mm

Drilling and Tapping Heads
CX-HD5-85 AIR/HYDRAULIC DRILLING HEAD Maximum Drilling : φ1-φ10mm
Main Spindle Taper : ER20/JT6
Main Spindle Travel : 85mm
Spindle Max Rotating Speed : 1400 (r/min)
Cylinder Area: 21.6m2
Center Height: 70±0.01
Motor: 0.75KW
Net Weight: 38kg
Using Hydraulic: 20-30 kg/cm2
Size(L*W*H): 115*464*370mm
CX-HD6-130 HYDRAULIC DRILLING HEAD Maximum Drilling: φ1-φ16 mmMain Spindle Taper: ER25/JT6Main Spindle Travel: 130mmSpindle Max Rotating Speed: 1400 (r/min)Cylinder Area forward: 37.1m2 backward: 15.8m2Center Height: 70±0.01Motor: 1.5KWNet Weight: 50kgUsing Hydraulic: 20-30 kg/cm2Size(L*W*H): 160*719*417mm
CX-HD8-150 HYDRAULIC DRILLING HEAD Maximum Drilling: φ1-φ35mmMain Spindle Taper: MT4/LINE GROOVEMain Spindle Travel: 150mmSpindle Max Rotating Speed :1500 (r/min)Cylinder Area forward: 71.2m2 backward: 31.4m2Center Height: 90±0.01Motor: 1.5KWNet Weight : 67kgUsing Hydraulic: 20-30 kg/cm2Size(L*W*H): 280*860*470mm

Detailed Photos
Company Profile
FAQ
1. Are you a manufacturer or trade company?
-----Yes, we are a manufacturer, our factory is in Dongguan, Guangdong Province, China.2. What is payment terms?
-----Usually 30% deposit, the balance will be paid before delivery.3. What is the warranty time ?
-- One year warranty and life time maintenance.4. Do you provide OEM services?
-- Yes, we provide OEM services.5. Can you send engineers to serve overseas ?
-- Yes, we can , but you are responsible for round-trip air tickets and accommodation of our engineers.6. What is the loading port ?
-- Shenzhen / Guangzhou port in China.
