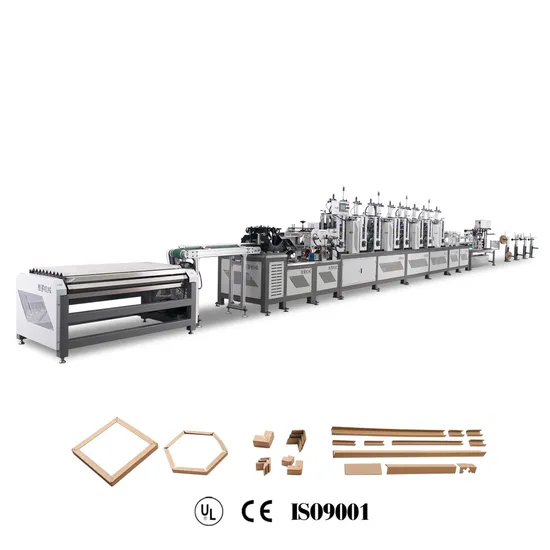

Multi-Purpose 3in1 U/L /Flat Board Paper Edge Protector Machine

Product Description

Product Description

Product Parameters

Model	SAN-S60-F3
V protector size	25-100 mm(can be symmetrical and asymmetrical)
V Thickness	1-10 mm
U protector size	Width 20-120 mm Height 20-60 mm
U Thickness	2-6 mm
Flat size	50-180 mm
Flat thickness	3-15 mm
Applicable inner paper	360-600 gsm bobbin fiber paper
Applicable surface paper	175-250 gsm kraft paper
Core diameter of paper reel	3"(76mm) ( 4"or other sizes possible)
Max. quantity of layer	11, including 1 surface paper, or upon customer demand
Max. speed	V shape: 40 m/min U shape: 30 m/min Flat: 60 m/min
Applicable paper reel diameter	Max. 1300 mm
Cutting method	Servo cutting
Min. cutting length	50 mm
Cutting tolerance	±0.5 mm
Power supply	17.5KW, 380V, 50Hz, 3 phase
Air supply	0.6Mpa, 0.2m3/min
Total weight	About 5 tons
Dimension	30*1.5*2 m

Detailed Photos

Main features
1)Suspended paper stand with buffering effect, replace the paper rolls with hoist, no need to stop the machine.
2)Automatic controller for glue temperature ensures the good quality and high speed even in low temperature.
3)Heating system for production line, makes the protectors stronger.
4)Forming wheels adopt box-type suspended structure, easy to change molds.
5)Touch screen and human-machine interface of servo system, the operation is more humanized; the operation of adjust air cylinder is more convenient.
6)Automatic alarm, malfunction prompt, easy to adjust and maintain.
7)Hydraulic cutting system, maximum frequency is 90 times/minute.
8)Automatic stacking system with counter, no need manual counting.
9)Through changing molds, it can produce U\V profile protector and flat board. Certifications

Our factory

Exhibition

After Sales Service
One year guarantee for whole machine, all life follow-up service.
24 hours technical support by email.
Technicians oversea set-up and workers training.
Use- friendly English for operation system.
Packaging & Delivery
Packaging Details:Film+ honeycomb board packing
Delivery Detail:Shipped in 60 days after payment
THE PACKING IS SEAWORTHY AND SAFE.
FAQ Q: 1. Can you accept the small order?
A: Yes, we also accept small order.
Q: 2. Do you accept ODM or OEM?
A: ODM or OEM is welcomed.
Q: 3. How can I get more information I need?
A: You can email us or leave message to us or contact us directly. We will reply you asap.
Q: 4. Can you offer samples?
A: Some products can be provided as samples for free, but you need to pay the courier charge. You can contact us for more information.
Q: 5. Why choose us?
A: 1) We are a big manufacturer with many years professional experience.
2) Fast delivery and good service.
3) Stable quality with competitive price.
4) Strict management system.

---
