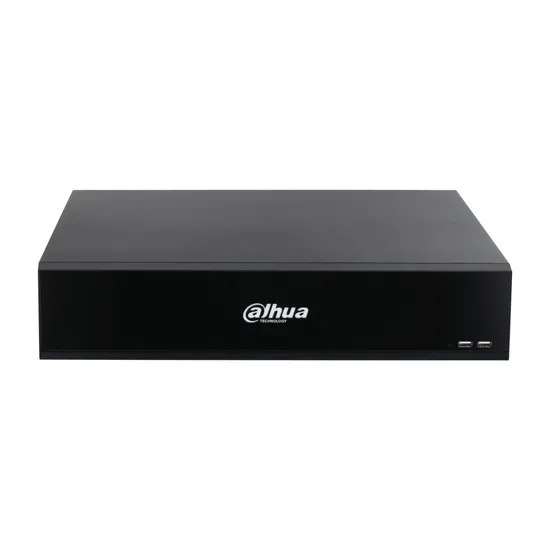

Dahua16 Channel Penta-Brid 4K 2u 8hdds Wizsense Digital Video Recorder DVR

Product Description

Company Profile https://pizetech.en.made-in-china.com/company-Hangzhou-Paize-Technology-Co-Ltd-.html
Dear buyers,
Hangzhou Paize TECHNOLOGY LIMITED is founded in 2015, we are always fousing on providing high quality Secrurity products such as network cameras and recorders, HDCVI cameras and recorders, PTZ cameras , Thermal Cameras, visual intercoms, Blurams, trafic and alarms ets. We have the professional sales and technical surpport team in Hangzhou. And we are a solution provider in the global video surveillance industry ."Sincere service, customer-oriented, professional marketing, and pursuit of excellence" is our business philosophy, "Technology as the driving force, quality to survive" is Our soul. Welcome to conact us for cooperation!
We are professional Dahua and Hikvision &IMOU products wholesales , Neutral and branded packing
you can choose. Product Description

XVR7808S-4K-I3 8 Channels Penta-brid 4K 2U 8HDDs WizSense Digital Video Recorder	XVR7816S-4K-I3 16 Channels Penta-brid 4K 2U 8HDDs WizSense Digital Video Recorder
> H.265+/H.265 dual-stream video compression. > Supports 8-channel AI-Coding. > Supports HDCVI/AHD/TVI/CVBS/IP video inputs. > Max 16 channels IP camera inputs, each channel up to 12MP; Max 128 Mbps incoming bandwidth. > Up to 8 channels video stream (analog channel) perimeter protection. > Up to 8 channels video stream (analog channel) SMD plus. > Up to 2 channels video stream (analog channel) human face recognition. > IoT & POS functionalities.	> H.265+/H.265 dual-stream video compression.> Supports 16-channel AI-Coding.> Supports HDCVI/AHD/TVI/CVBS/IP video inputs.> Max 32 channels IP camera inputs, each channel up to 12MP; Max 128 Mbps incoming bandwidth.> Up to 12 channels video stream (analog channel) perimeter protection.> Up to 16 channels video stream (analog channel) SMD plus.> Up to 6 channels video stream (analog channel) human face recognition.> IoT & POS functionalities.

Specification XVR7808S-4K-I3

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model: 2 channels, 10 IVS for each channel General Model: 8 channels, 10 IVS for each channel

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels (up to 12 face images/s each channel)

Face Recognition

Face Database Capacity

Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD Plus

SMD Plus by Recorder

8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps. 2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

Up to 16 channels of IPC access 8 IP channels by default + 8 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.

Encoding Capacity

Main stream: 4K@(1fps-15 fps); 6 MP@(1fps-20 fps); 5 MP, 4K-N,4 MP,3 MP, 1080p, 720p, 960H, D1, CIF@(1fps-25/30fps) Sub stream: 960H@(1fps-15fps);D1,CIF@(1fps-25/30fps)

Dual-stream

Yes

Video Bit Rate

32 kbps-8192 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

2 HDMI, 1 VGA, 1 TV VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 *Heterogeneous video sources output for HDMI2 is configurable.

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Samsung

Compression Standard

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Mobile Phone Access

IOS; Android

Interoperability

ONVIF 21.12; CGI

Browser

Chrome, IE9 or later, Firefox

Network Mode

Multi-address mode,Fault Tolerance,Load Balance

Recording Playback

Record Mode

General, motion detection; intelligent; alarm; POS

Recording Playback

1/4/9

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; video loss; tampering; local alarm

Anomaly Alarm

No disk; storage error; disk full; camera offline; IP conflict; MAC conflict

Intelligent Alarm

Face detection; face recognition; perimeter protection

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email

Ports

TV Output

1 channel

Audio Input

4-channel BNC 8-channel BNC (Coaxial Audio)

Audio Output

1-channel BNC

Two-way Talk

1-channel BNC

Alarm Input

16 channels

Alarm Output

6 channels (5-channel relay output, 1-channel 12 V 1 A output)

HDD Interface

8 SATA ports, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.

eSATA

1

RS-232

1 port, for PC Communication & Keyboard

RS-485

1 port, for PTZ control

USB

4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)

HDMI

2

VGA

1

Network Port

2 (10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply

100-240 VAC, 50/60 Hz

Power Consumption

<20 W (without HDD)

Net Weight

6.80 kg (15.00 lb)

Gross Weight

9.40 kg (20.73 lb)

Product Dimensions

439.9 mm × 455.6 mm × 94.9 mm (17.32'' × 17.94'' × 3.73'') (W × D × H)

Packaging Dimensions

570.0 mm × 57 0.0 mm × 226.0 mm (22.45" × 22.45" × 8.90") (W × D × H)

Operating Temperature

-10 °C to +55 °C (14 °F to +131 °F)

Operating Humidity

10%-90% (RH)

Installation

Rack or desktop

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B

XVR7816S-4K-I3

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model: 6 channels, 10 IVS for each channel General Model: 12 channels, 10 IVS for each channel

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

6 channels (up to 12 face images/s)

Face Recognition

Face Database Capacity

Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image

Face Recognition Performance of AI by Recorder (Number of Channels)

6 channels

SMD Plus

SMD Plus by Recorder

16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 4K, 6 MP, 5 MP, 4 MP, 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30 fps. 2. TVI: 4K, 5 MP, 4 MP, 3 MP, 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 4K, 5 MP, 4 MP, 3 MP, 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

Up to 32 channels of IPC access 16 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.

Encoding Capacity

Main stream: 4K@(1fps-15 fps); 6 MP, 5 MP@(1fps-25 fps); 4K-N,4 MP,3 MP, 1080p, 720p, 960H, D1, CIF@(1fps-25/30fps) Sub stream: 960H@(1fps-15fps);D1,CIF@(1fps-25/30fps)

Dual-stream

Yes

Video Bit Rate

32 kbps-8192 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

2 HDMI, 1 VGA, 1 TV Resolution VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 *Heterogeneous video sources output for HDMI2 is configurable.

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung

Compression Standard

Video Compression

AI Coding; H.265+; H.265; H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 21.12; CGI

Browser

Chrome, IE9 or later, Firefox

Network Mode

Multi-address mode,Fault Tolerance,Load Balance

Recording Playback

Record Mode

General, motion detection; intelligent; alarm; POS

Recording Playback

1/4/9/16

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; video loss; tampering; local alarm

Anomaly Alarm

No disk; storage error; disk full; camera offline; IP conflict; MAC conflict

Intelligent Alarm

Face detection; face recognition; perimeter protection

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email

Ports

TV Output

Yes

Audio Input

16-channel BNC (external) 16-channel BNC (coaxial audio)

Audio Output

1-channel BNC

Two-way Talk

1-channel BNC

Alarm Input

16 channels

Alarm Output

6 channels

HDD Interface

8 SATA ports, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature

eSATA

1

RS-232

1 port, for PC Communication & Keyboard

RS-485

1 port, for PTZ control

USB

4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)

HDMI

2

VGA

1

Network Port

2 (10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply

100-240 VAC, 50/60 Hz

Power Consumption

<30 W

Net Weight

6.9 kg (15.21 lb)

Gross Weight

9.5 kg (20.94 lb)

Product Dimensions

2U, 439.9 mm × 455.6 mm × 94.9 mm (17.32" × 17.94" × 3.73") (W × D × H)

Packaging Dimensions

570.0 mm × 570.0 mm × 226.0 mm (22.44" × 22.44" × 8.90") (W × D × H)

Operating Temperature

-10 °C to +55 °C (14 °F to +131 °F)

Operating Humidity

10%-90% (RH)

Installation

Rack or desktop

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B

Compare products

HDCVI Recorders
Image	XVR7808S-4K-I3	XVR7816S-4K-I3
Properties
Video Compression	AI Coding/H.265+/H.265/H.264+/H.264	AI Coding/H.265+/H.265/H.264+/H.264
Audio Compression	G.711/PCM	G.711/PCM
Video Standard	HDCVI/AHD/CVBS/TVI(Auto-detect)	HDCVI/AHD/CVBS/TVI(Auto-detect)
Max. Recording Resolution	CH01-08: 4K	CH01-16: 4K
Max. HDCVI Recording Rate	15fps@4K 20fps@6MP 30fps@5MP 30fps@4MP 30fps@4K-N 30fps@4MP 30fps@3MP 30fps@1080P	15fps@4K 20fps@6MP 25fps@5MP 30fps@4MP 30fps@3MP 30fps@1080P
CVBS Input	8CH,1.0Vp-p,75Ω	16CH,1.0Vp-p,75Ω
IP Camera Input	8+8 Up to 12MP	16+16 Up to 12MP
Max IP Input/Record	128Mbps/128Mbps	128Mbps/128Mbps
Audio In/out	8/1, 2-way	16/1, 2-way
Max HDD	8×16TB	8×16TB
Display	HDMI 1(3840x2160) VGA/HDMI 2(1920x1080) *Heterogeneous video sources output for HDMI2 is configurable	HDMI1(3840x2160) HDMI2/VGA(1920x1080),TV
eSATA	1	1
USB	2USB 3.0,2 USB 2.0	2 USB3.0, 2 USB2.0
DVD Burner	USB/SATA	USB/SATA
Alarm In/Out	16/6	16/6
Ethernet	2×1 Gigabit port	2 Gigabit ports
Remote User Login	128	128
Dimensions	440 mm × 456 mm × 95 mm(17.32'' × 17.94'' × 3.73'')	440 mm × 463 mm × 95 mm (17.32" × 18.23" × 3.73")
Power	AC100-240 V, 50/60 Hz ≤20W(Without HDD)	AC 100-240V,50/60Hz,≤35W(Without HDD)
Perimeter Protection	Up to 8 channels	Up to 6 channels
Face Recognition	Up to 12 face pic/s face recognition 2 channel video stream 10 face database with up to 20,000 face images in total	Up to 12 face pic/s face recognition 6 channel video stream 10 face database with up to 20,000 face images in total
SMD PLUS	Up to 8 channels	Up to 16 channels
