Rod HDPE Polyethylene Machinable Plastic Rods

Product Description

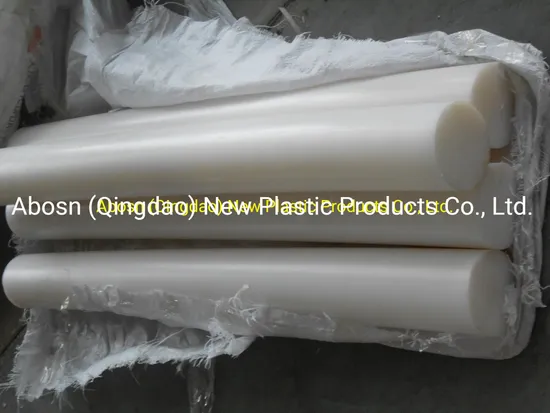

Different Diameter 100% Virgin Material Round Solid HDPE Rods
Products Description
1.The color is pure and any color can be made by us.
2.We can give you an accurate size of HDPE rod with advanced machine.
3.According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant,anti-static and with other characters.

PROPERTIES	Test Method	Unit	Value
I.Physical Properties
Density	ISO 1183	g/cm3	0.95~0.96
Water absorption 24hrs	ISO 62	%	0.01
II.Thermal Properties
Heat deflection temperature - HDT/A	ISO 75-2	ºC	55
Min. service temperature		ºC	-30
Max. service temperature-Long Term		ºC	90
Thermal conductivity at 23 ºC	DIN 11359	W/(K*m)	0.42
Coefficient of linear thermal expansion	ISO 11359	10-4*K-1	1.5
Flammability Rating(6mm thickness)	UL 94	-	HB
III.Mechanical Properties at 23ºC
Tensile strength at yield	ISO 527-2	MPa	27
Tensile strength at break	ISO 527-2	Mpa	35
Elongation at break	ISO 527-2	%	700
Modulus of elasticity after tensile test	ISO 527-2	MPa	1,000
Modulus of elasticity after flexural test	ISO 178	MPa	1,000
Hardness - Shore D	DIN 53505		64
Charpy impact strength	ISO 179	kJ/m2	N. B.
Friction coefficient	DIN 53375		0.3
IV.Electrical Properties at 23ºC
Dielectric constant at 1 MHz	IEC 60250	106Hz	2.3
Dielectric loss factor at 1 MHz	IEC 60250	106Hz	3.1
Volume resistively	IEC 60093	Ohm (Ω) * cm	>1016
Surface resisively	IEC 60093	Ohm (Ω)	>1015
Dielectric strength	IEC 60243-1	kV/mm	17

Our PE Rod size :
Φ20,Φ30,Φ50,Φ80,Φ100,Φ150 and other size
Our PE Rod Applications:
1.Chain and belt guides
2.Sliding and power transmission components
3.Chain sprockets and gear wheels
4.Sliding components and bearings
5.Track and guide rollers
6.Environmental Friendly
ABOSN HDPE Sheets are environmental friendly product because they are completely recyclable. When the environmental issue is getting more serious, everyone has the responsibility in fighting Global Warming. We should be contributing a little efforts in using products that are recyclable.
Specifications:
1. Heating size change rate under 80°C: 52% (standard ≤60% ).
2. Tensile Strength in lengthways: 8.08 Mpa (Standard ≥7.0Mpa).
3. Tensile Strength in transverse: 7.71 Mpa (Standard ≥7.0Mpa).
4. Any color, machining with drawing available.
OEM Sevrice :
We provided you with various OEM Sevrice .HDPE Block ,HDPE Impact bar ,HDPE Strip ,HDPE rod and other HDPE parts .
Our UHMWPE Rod Applications:
1.Chain and belt guides
2.Sliding and power transmission components
3.Chain sprockets and gear wheels
4.Sliding components and bearings
5.Track and guide rollers
Company Information
- Mainly manufacture HDPE and UHMWPE engineering products.
- Have rich experience in the line of engineer plastic products for long time.
- Passed the latest ISO9001:2008 quality system.
- Located in Qingdao, the third-largest port city in China.
- Convenient traffic and developed imports and exports.
Trade&MarketMain Markets:
North America South America Europe
Africa Russia Australia
Southeast Asia
Annual Sales: 6,000,000 tons
FAQ Q: Are you producer or trader? A: We are producer.Q: Are plastic mats prone to cracking or bending?
A: All plastic mats will flex to follow ground contours. However due to the exceptionally high grade of HDPE used in our premium mats, they are guaranteed against cracking or breaking.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: What is the expected lifespan of your mats?
A: Our mats are designed for longevity with a typical lifespan of up to 10 years or more, depending on frequency and type of use.

Q: What is your terms of payment ?
A: 50% pay in advance and balance upon the B/L .
Please contact us if you have any question If Any Questions,Please Feel Free to Contact US:
