Professional Manufacturer Capillary Tube Mat for Ceiling Cooling
Product Introduction

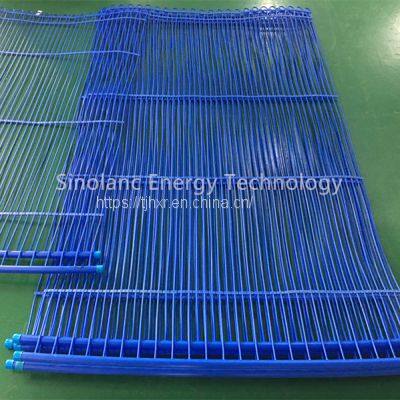

Capillary Tube Mat
Product Description
Product
| Capillary Tube Mat
|
Material
| PP-R
|
Main tube size
| 20*2.0mm
|
Capillary tube size
| 4.3*0.8mm
|
Capillary tube space
| 10mm, 20mm, 40mm,etc
|
Length (L)
| 600-8000mm as request
|
Width (B)
| 1000mm standard or as request
|
Weight
| 290~870 g/m2
|
Water content
| 0.16~0.57 L/ m2
|
Total weight with water
| 320~1440 g/m2
|
Connection method
| Connect mats to another and to the water circuit by means of thermal welding.
|
Test Pressure before leave factory
| 20bar (2Mpa)
|
| Normal System Operation Pressure | 4bar |
For more details about the capillary mats, please feel free to contact us.
|
Sinolanc Capillary Tube Mats Application:
With the advantage of good flexibility,the Sinolanc capillary tube mats can be installed on roof, wall, floor, under the surface decorative materials. They used in new buildings and refurbishment of various types of buildings.
For cooling purposes, Sinolanc capillary tube mats are preferentially installed either in or on the ceilings.
They can be integrated into walls of various designs and used as wall heating and wall cooling.
Underfloor heating systems with capillary tube mats can be used for temperature control in all buildings.
The mats are either integrated into an existing screed or laid directly on an existing floor as a thin-layer underfloor heating system and enable gentle temperature control of floor surfaces.
1. We are the verified first and largest manufacturer of capillary mats with a tradition of over 15 years
2. We use only the best quality PPR raw material with more outstanding performance!
3. All the sinolanc mats are produced on special advanced machines in strict accordance with quality standards and high precision and safety.Every working step in the manufacturing process is monitored and recorded
4. Sinolanc mats have exported to 50 countries and established distributors in some European countries
and working with experienced installers can provide efficient technical and construction support overseas.
Such as Poland, Germany, Romania, Slovakia, Latvia, Lithuania, Netherlands, Switzerland, Italy, etc.
