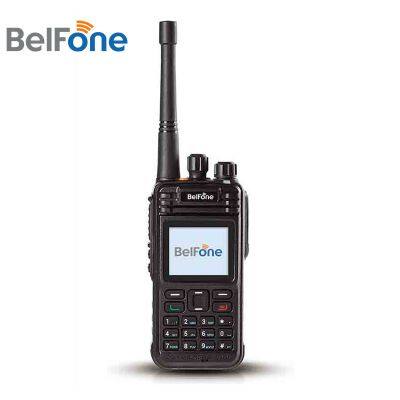

Belfone Certified Dmr Two-Way Radio with CE/FCC/IP67 (BF-TD511)

Product Description

Product Description
DMO Pseudo Trunk
The user can choose slot 1 or slot 2 for communications. When one slot is occupied the radio will automatically switch into the free slot. Frequency efficiency is greatly increased.
DMO True 2-Slot
In direct mode, this radio supports two voice calls simultaneously due to DMR two timeslots, which means two communication paths on 1 frequency at no extra costs or frequency license.
Digital/analog Dual Modes
BF-TD511 gives you a smooth transition from analog to digital.
Private Call, Group Call and All Call
The versatile calling functions bring more efficiency to your teamwork.
Long Battery Standard Time
BF-TD511 is a powerful radio with long battery life. (digital 22h& analog 16h)
Excellent Audio Quality
The AMBE3000 vocoder and FEC technology give BF-TD511 loud and clear digital audio.
Transmit Interrupt
This function enables a supervisor to interrupt a radio conversation in order to clear a channel for more important communications.
Remote Kill/Revive
Such functions enable you to kill or revive a radio over the air. This greatly facilitates dispatching work and can be especially useful should a radio happen to be lost. You can easily remote kill the lost radio and confidential information can be kept from leaking out.
Radio Priority-based Interruption
This function enables a radio with a higher level to interrupt communications between radios with lower levels, giving higher priority to radios with higher levels. This means better dispatching efficiency.
Automatic Roaming (Programmable)
In an IP multi-site network, this feature enables BF-TD511 to automatically roam among all sites and stay connected, delivering more flexibility and efficiency.
Product Parameters

General
Frequency Range	UHF:350-390MHz/400-480MHz/450-520MHz
Channel Capacity	32
Zones	2
Channel Spacing	12.5KHz
Antenna Impedance	50Ω
Operating Voltage	DC7.4V (±20%)
Battery Average Working Time(5/5/90)	Digital:18 hours; Analog:14 hours
Battery Capacity	Real 1800mAh
Frequency Stability	±1.5 ppm
Dimensions	61(L)×35(W)×117(H)mm
Weight	239g (including battery pack)
Transmitter
Power Output	H: 5W / M: 3W / L:1W
4FSK Modulation	12.5KHz data only:7K60FXD 12.5KHz data and voice:7K60FXE
FM Modulation	12.5KHz;8K50FXD
Modulation Limitation	+/- 2.5KHz @ 12.5KHz; +/- 5KHz @ 25KHz
Spurious Emission	-36 dBm ≤1 GHz -30 dBm ≥1 GHz
Rated Audio Distortion	≤3%
Adjacent Channel Power	≤-60dB
Frequency Response	+1/-3 dB
Vocoder	AMBE3000
Receiver
Digital Sensitivity	5% BER: 0.25μV
Analog Sensitivity	0.25μV (12 dB SINAD)
Adjacent Selectivity	60dB
Intermodulation	65dB
Spurious Suppression	70dB
Conduction Radiation	-36 dBm
Rated Audio Power	500mW
Rated Audio Distortion	3% (typical)
Environmental Specifications
Shock & Vibration	MIL-STD-810C/D/E/F
Working Temperature	-20ºC~+60ºC
Storage Temperature	-30ºC~+85ºC

---
