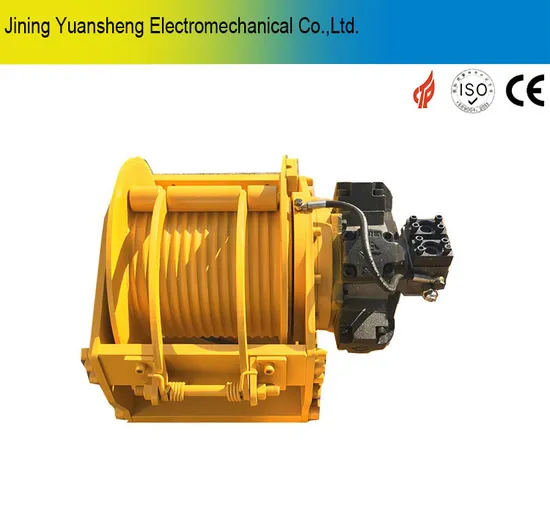

5 Ton 10 Ton 20 Ton Hydraulic Winch for Boat

Product Description

For hydraulic winching applications,we are professional . Powerful hydraulic motors allow for extended duty. Hardened steel gear trains deliver efficient and reliable operation plus fast line speeds. Like their electric cousins, these products comply with worldwide quality and safety standards.
Yuansheng Winch Planetary Hydraulic Winches deliver fast, powerful winching pull after pull. With working capacities of 1100 lbs. (500 kgs) to 66,000 lbs. (30000 kgs) designed for the demands of the towing and recovery, lift, utility, oil & gas, and mining & construction applications, Yuansheng has the industrial hydraulic winch you need. Fast line speeds limit time in the danger zone as well as increase efficiency and productivity on the job. Cables can be under-wound to minimize strain on the winch, or overwound reducing risk of damage to the load. Many models can be either foot or side mounted for adaptability and ease of maintenance.
Yuansheng Winch Hydraulic Planetary Winches are tested and certified to operate in temperatures from -40° F to 120° F. Our winches offer easy, fast free spooling with only 132 lbs (60kg). resistance at -35ºF and can be operated by air or manually, providing fast line payout and reducing wear on components. Our Winch Hydraulic Planetary Winches are manufactured to meet ISO 9001 and CE standards .
+ Heavy duty, high-flow hydraulic motor
+ Standard roller tensioner and drum brake provide optimal rope winding
+ Mechanically locked clutch with smooth action.
+ Efficient planetary gear design allows for long-term lubrication with grease
+ Easy access and servicing; all internal components are available as complete assemblies
+ Large drum diameter for longer wire rope life with less kinking; SAE J706 compliment
+ Automatic, spring applied disc brake; highly reliable and robust; complies fully with ISO CE standard
The following is some of our hydraulic winch types specs.

Model	YS0.8	YS1.5	YS2.0	YS 3.0	YS 4.0	YS 5.0	YS 7.0	YS 12.0	YS 15.0
Line pull (KN)	8	15.5	20	30.2	40	50	70	120	15.0
Rope diameter (mm)	8	10	12	12	14	16	20	25	28
Rope capacity (m)	48	55	90	90	60	55	90	50	50
System pressure(Mpa)	16	16	16	18	18	20	20	25	31.5
Hydraulic motor (cc/r)	160	250	245	305	400	250	400	420	160
Reduction ratio	5.8	5.8	4.5	7	6.4	22.8	22.8	28.1	68
Winch Speed (m/min)	0-30	0-40	0-45	0-30	0-40	0-25	0-25	0-30	0-30
Remark	YS 0.8---3.0 is orbit hydraulic motor, if you need, we can send the photo to you.

Product Introduction:
For drilling rig hydraulic winch, now we supply the winch for about 20 drilling rig factory. Most of the winch is 0.8 ton, 1 ton , 1.5 ton, 2 ton, and 3 ton. Every year, we provide these type winch for drilling rig factory about 2000 sets. Of course our winch also used on the other application, such as boat winch, crane winch, excavator winch, bulldozer winch,tractor winch, truck winch, pile rig winch, dredger winch,etc. The following is some of our winch used on application.
Customer Show
Over 8 years manufacture, now we have hydraulic lift winch from 0.5 ton to 30 ton, hydraulic towing winch from 4 ton to 50 ton. All of our winch have passed CE and ISO certificate, And at the same time , we owned many houner, such as inventory patent.
All of our winch is planetary gear winch, the winch consist of drum, flange, support frame, gear reducer, brake,hydraulic motor,etc. For towing winch, there is manual clutch. For hoist winch, free fall winch, there is hydraulic oil control clutch. Every component is manufactured by our own factory, warranty one year. If there is any problem in warranty, we provide free spare part.
FAQ Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample ,but it need to be afford by customer.
For more information about our company and our product, please contact me freely

---
