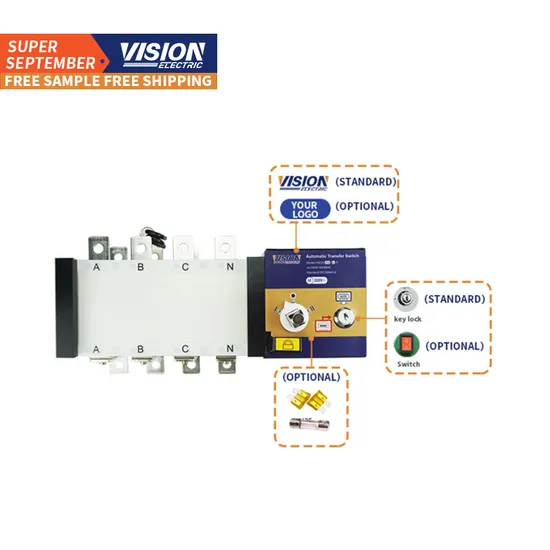

ATS 160A Dual Power Generator 4 Poles Generator Changeover Switch 100A 250A 400A 630A 800A 1000A

Product Description

Product Description VISION ATS 20A 63A 80A 100A 125A 160A 250A 400A 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A VSQ Automatic Transfer Switch (ATS) is used under conditions of AC660V 50/60Hz or DC250V. It is two-stage PC class type with electromagnetism drive structure, which can make fast load transfer (transfer time ≤80ms) of two power circuits. It can be widely used for national one-class load, for example: high buildings, post, telecommunications, coal mines, ships, industrial assembly lines, health care,facilities etc. The two power circuits can be grid, auto start genset, storage battery etc.
When the mains power fails or is in an abnormal state such as phase loss, overvoltage, or undervoltage, the ATS system
automatically starts the standby diesel generator set according to the preset mains loss confirmation delay. After confirming that the output voltage of the generator set is normal, it automatically switches to For the generator set, the load is powered by the generator set; when the mains power returns to normal, it will automatically switch to restore the mains power supply to the load after confirmation by a preset delay. After the generator set is unloaded, it will automatically stop after a preset cooling operation. * Good installation performance
* The adoption of zero-crossing detect technique, emergency can be forced to set zero (simultaneously cut off two power supply)
* with obvious on-off indication, padlock and other functions, to achieve the isolation between the power supply and load
* High reliability, over 6000 times service life
* High degree of automation * Good electromagnetic compatibility, strong anti-interference ability, no external interference * The switch has multiple input / output interfaces, which is convenient for remote PLC control and system automation. Main Technology Parameters

Recommended Cabinet Installation Dimension
Model	Recommended Cabinet Dimension (L*W*H cm)	Recommended Cabinet Dimension (L*W*H cm)
VSQ3-100A-VSQ3-250A	50*40*80	50*25*60
VSQ3-300A-VSQ3-630A	60*50*180	55*45*160
VSQ3-800A -VSQ31250A	80*60*220	75*60*180
VSQ3-1600A	80*60*220	75*60*200
VSQ3-2500A-VSQ3-3200A	80*80*220	75*80*200
Reference only ,please according to the actual conditions.

Product name	Net weight(KG)	DIMENSION/SET (cm)	DIMENSION/CTN(CM)
VSQ3-100A	4	28*12*17	38.5*30*37
VSQ3-160A	7	34.5*21.5*23	45.5*37.5*25.5
VSQ3-250A	9.5	42*21.5*26	46.5*45*29
VSQ3-400A	17.5	53*30*33.5	53*30*33.5
VSQ3-630A	18.5	53*30*33.5	53*30*33.5
VSQ3-1000A	47.5	72*40*39	72*40*39
VSQ3-1250A	50	72*40*39	72*40*39
VSQ3-1600A	52.5	72*40*39	72*40*39

Why Choose Us Contacts Jenny Xie

---
