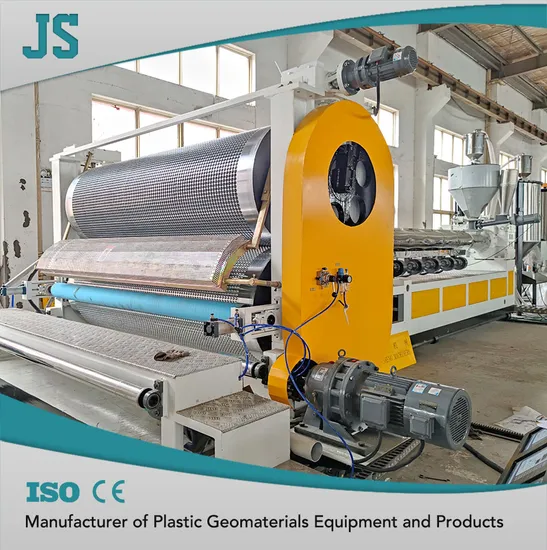

Plastic Drain Board Machine for Construction Drainage Systems

Product Description

Product Description
plastic drain board machine used for basic construction
Final Membrane Width: 1m, 1.5m, 2m, 3m, 4m
We have installed 12 sets 4m width automatic dimpled membrane machine in last 2 years.
Brand: Junsheng
Machine Certificate: CE
Guarantee: 2 years
Turn-key project: installation in buyer's factory and train buyer's operators Product Parameters
Machine Components:
Robot material pick up & transmission
Dryer & Dosing
Extruders & Gear pumps
Filters
Automatic T die & Online Thickness Measure
Dimple Forming Unit & Online Lamination Unit
3-roller Calender Unit
Draw-off & Cooling & Membrane Storage Shelf
Automatic Cutting Units
Automatic Winder with Tape & Weigh & Transmission
Main Technical Specification:

Model		PSB-2000	PSB-3000	PSB-4000 (Automatic)	PSB-5000 (Automatic)
Screw dia.	mm	135	150	180×2	200×2
L/D ratio	L/D	30:1	30:1	33:1	33:1
Product width	mm	2000	3000	4000	5000
Product height	mm	8, 10, 12, 15, 18, 20, 25, 30, 35, 40
Output	Kg/h	400	500	1200	1500
Line speed	m/min	2-6
Installed capacity	KW	252	320	1000	1500
Power consumption	KW	132	160	800	1000
Dimensions (L×W×H)	m	22×4×2.8	22×5×2.8	40×15×3	45×15×3
Total weight	T	16	25	80	1000

Detailed Photos

---
