Fluidized Fluidizing Fluid Bed Boiling Granulator for Pharmaceutical

Product Description

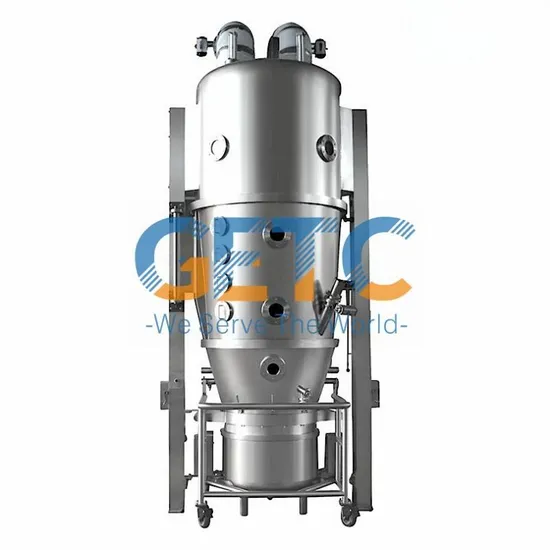

Fluidized Bed Granulator Product Description
The machine is composed of main machine, air handling system, heating system, slurry handling system and control system. When it works, the materials are fed into the silo of the fluid bed granulator, and after the programs and parameters are set according to the process requirements, the machine starts to work. After filtered by the air handling system and heated by the heating system, the air enters the main machine. After going through the slurry handling system, the slurry is sent to the spray gun and sprayed to the materials inside the cavity, and then is bonded with powder to form granules. After the operation is completed according to the set programs and parameters, the silo is pushed out and connected with the lifting material transferring machine for lifting discharging or the vacuum feeder is used to pump the materials to a high position for granule sizing by the granule sizing machine, so as to effectively control dust pollution and cross contamination.
Features
• Through powder granulating, the flow property is improved and the dust is reduced.
• Through powder granulating, its solving property is improved.
• The mixing, granulating and drying processes can be completed in one step inside the machine.
• The operation of equipment is safe, because the anti-static filtering cloth is adopted.
• Operation personnel cannot be damaged if explosion takes place, because there is releasing hole.
• Has no dead corner. Therefore the loading and unloading are quick, light and clean.
• Meets the requirements of GMP.
Applications
Phamaceutical industry: tablet, capsule, low sugar or no sugar granule of chinese medicine.
Foodstuff: cocoa, coffee, milkpowder, juice of granulate, flavoring and so on.
Other industries: peticide, feed chemical fertilizer, pigment, dyestuff and so on.
Pharmaceutical industry: power or granule material.
Coating: Granule, protecting coat of pellet, spare color, slow release film, bowel-dissolve coating, etc.
Product Parameters

Specification			3	5	15	30	45	60	90	120	150	200	300	500
Volume		L	12	22	45	100	155	220	300	420	550	670	1000	1500
Capacity		Kg/batch	3	5	15	30	45	60	90	120	150	200	300	500
Steam	Pressure	Mpa	0.4-0.6
	Consumption	Kg/h	10	18	35	60	99	120	130	140	161	180	310	400
Power of Fan		kw	3	4	4	5.5	7.5	11	15	18.5	22	22	30	45
Power of Electrical Heating		kw	6	9
Noise		db	≤75
Compressed Air	Pressure	Mpa	0.6
	Consumption	M3/min	0.3	0.3	0.6	0.6	0.6	0.9	0.9	0.9	0.9	1.1	1.3	1.5

Related Products
High-Speed Wet Mixture Granulator Rotary Extruding Granulator Screw Extrusion Granulator
Company Profile
Changzhou General Equipment Technology Co., Ltd. is located in LiYang city, a famous scenic and tourist city in JiangSu Province. It is a high-tech equipment manufacturing enterprise . The company is located in the local High-tech Machinery Industrial Park, with very convenient transportation.
The company covers an area of 70,000 square meters, plant area of 50,000 square meters, nearly 100 employees. The company has high-end processing equipment & testing equipment; It has D1 and D2 pressure vessel design qualifications and A2 pressure vessel manufacturing qualifications.Our main products are including Jet Mill Micronizer, Mixer, Granulator and Dryer, Chemical Equipment: Reactor, Heat Exchanger, Column, Tank and Environmental Protection Equipment, etc .
We provide technology research and development, process design, equipment manufacturing, installation and commissioning, project contracting and other comprehensive services. Our products are quite widely applied in the industry of petrochemical industry, Pharmaceutical , Agricultural Chemistry, New Energy, thermal power, steel smelting, Environmental Protection and other Service.Our customers are from the domestic and overseas markets, product quality and fantastic service are deeply praised by customers and partners.
We adhere to the concept of "Scientific Management, Advanced Technology, Quality Priority & Win-Win Cooperation", pursue the enterprise purpose of "Market by Quality, Win customers by Reputation, and seek development by Science & Technology", carry forward the enterprise culture, deepen the enterprise management, enhance the enterprise image, actively create new high-quality products, to provide customers with the superior quality.
Sincerely welcome all customers to visit our company for guidance and cooperation, let's make a better future together.
