Big Spindle Bore 51mm D1-5 Bench Precision Engine Gap Lathe Machine CZ1440g/1 One Meter Lathe

Product Description

1.Features:
1)The clutch inside headstock realizes the spindle to change FWD/REV direction .It avoids electric motor to be changed frequently
2)Supersonic frequency hardened bed ways
3)Precision roller bearing for spindle
4)High quality steel,ground and hardened gear inside headstock
5)Easy and fast operating gearbox
6)Enough stong power motor
7)ASA D4 camlock spindle nose
8)Various thread cutting available

2.Specification:

BENCH LATHE		CZ1440G/1
Main data	Swing over bed	φ 355mm
	Swing over carriage	φ 220mm
	Swing over gap	φ 500mm
	Width of bed-way	186mm
	Distance between centers	1000mm
Spindle	Taper of spindle	M. T. 5
	Spindle diameter	φ 51mm
	Step of speed	8 Steps
	Range of speed	84-1850 rpm
	Head	D1-5
Thread and feed system	Metric thread	26kinds (0.4~7mm)
	Inch thread	34kinds(4~56T. P. I)
	Module thread	16 kinds(0.35~5M. P)
	Diametral thread	36 kinds(6~104D. P)
	Longitudinal feeds	0.091-2.533mm (0.0036" ~0.1005" )
	Cross feeds	0.25~0.69mm (0.0012" ~0.0345" )
Main lead screw	Diameter lead screw	φ 22mm(7/8" )
	Pitch of lead screw	3mm or 8T. P. I
Saddle and carriage	Saddle travel	1000mm
	Cross travel	170mm
	Compound travel	74mm
Tailstock	Barrel travel	95mm
	Barrel diameter	φ 32mm
	Taper of center	M. T. 3
Power	Motor power	1.5KW (2HP)
	Motor for coolant system' s power	0.04KW (0.055HP)
Shipment data	Machine(L× W× H)	1920× 760× 760 (mm)
	Stand(left) (L× W× H)	440× 410× 700 (mm)
	Stand (right)(L× W× H)	370× 410× 700 (mm)
	Machine	510/565 (kgs)
	Stand	70/75 (kgs)
	Loading qauntity/20" container	22 pcs

Optional accessoriesStandard accessories :Tool box,Tool post wrench,3-jaw chuck and wrench ,4- jaw chuck.Allen wrench,Change gears set , Follow rest, Steady rest, Machine Stand
1.Drill chuck and arbor:
2.Live center
3.face plate
4.Protection for tool post
5.protection for chuck
6.protection for lead-screw
7.work light
8.coolant system
9.splash guard
10.foot brake
11.DRO 2-AXIS

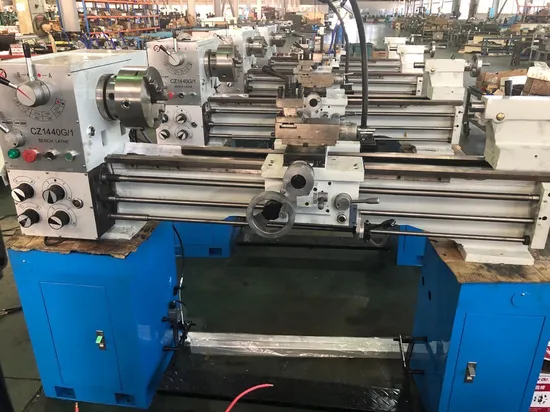

3.Machine Photos
4.Our company's manufcturing ability

---
