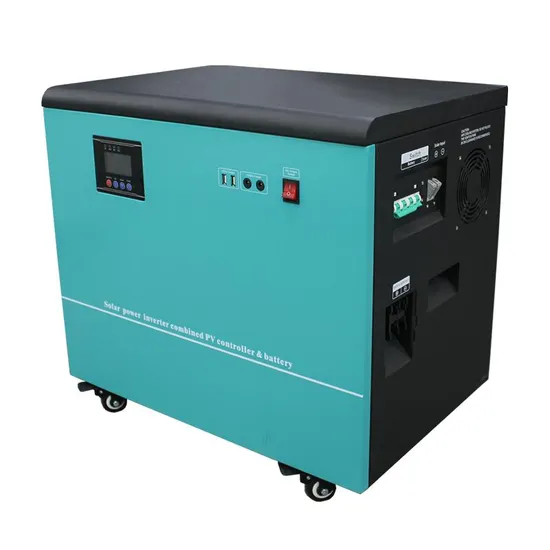

| Model: ALP | 2KW | 3KW | 4KW | 5KW | 6KW | |
| Inverter | Battery/System Voltage | 51.2VDC (Optional) | ||||
| Specification Of Built-in Battery (Can be customized) | 50AH/100AH/150AH/200AH * 51.2V | |||||
| Rated Power (W) | 2000 | 3000 | 4000 | 5000 | 6000 | |
| Input Voltage (VAC) | 85-138VAC/170-275VAC | |||||
| Input Frequency (Hz) | 45-65 | |||||
| Output Voltage (VAC) | 110/220 | |||||
| Output Frequency (Hz) | 50/60 | |||||
| Output Wave | Pure Sine Wave | |||||
| MPPT Solar Input | MPPT Voltage Range | 60VDC-150VDC | ||||
| PV Power | 1500W | 3000W | ||||
| Rated Charge Current | 30A (Max.) | 60A (Max.) | ||||
| MPPT Efficiency | ≥ 99% | |||||
| Floating Charge voltage | 56.8VDC | |||||
| DC Output | Low Voltage Recovery Voltage | 52VDC | ||||
| Low Voltage Protection Voltage | 44.8VDC | |||||
| 5VDC USB Output | 2PCS/Max. 2A | |||||
| 12VDC Output Ports | 2PCS/Max. 2A | |||||
| Other Parameters | Operating Ambient Temperature | -20ºC - 50ºC | ||||
| Storage Ambient Temperature | -25ºC - 55ºC | |||||
| Operating/Storage Ambient | 0 - 90% No Condensation | |||||
