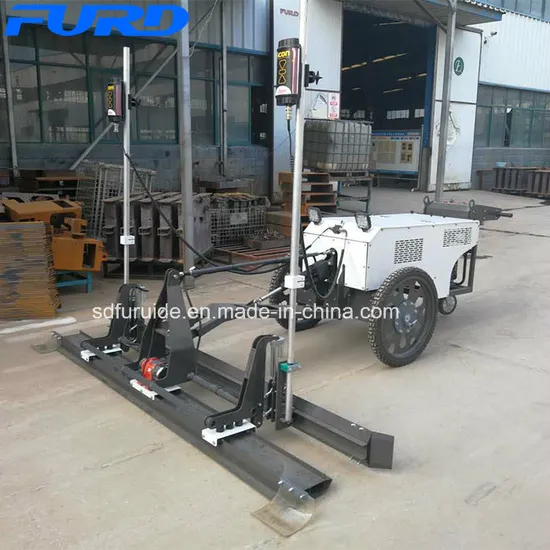

Hand Operated Concrete Vibrating Laser Screed for Pavement Fdjp-24D

Product Description

Welcome to FURD!
Jining Furuide Machiney Manufactuing CO; LTD. estabished in 2008, is a professional manufacturer engaged in the resarch, development, prodction, sale and service of vibratory road roller, concrete cutter and other light construction machines.
FDJP-24 Electric Control Concrete Laser Screed Machine is used for concrete construction in large area, such as workshop, supermarket, warehouse, airport, square and so on, can meet the construction requirement of high flatness and levelness for large area. Also can used in flat, slope, double slope road concrete screeding and rebar concrete project.concrete laser screed

Hand Operated Concrete Vibrating Laser Screed For Pavement FDJP-24D
Model		FDJP-24
Engine Model		HONDA GX390 Electric Start
Type		4 Stoke, Gasoline Engine, Single Cylinder
Power		13HP/3600 rpm
Drive		Hydraulic Motor
Lubricant		1.12L
Fuel Consumption		313g/kwh
Wheel		Beach Tire
Running Speed		0-50m/min
Working Speed		5m/min
Screed Head Type		Self-levelling
Screed Width		2500mm
Exciting Force		500N
Vibration Frequency		50Hz
Screed Plate Level control		Electric Automatic Control
Control Type		Microcomputer Laser Scan
Operation Mode		Walk-behind
Forward, Backward		Switch Control, CVT
Steering		Hydraulic Control
Fuel Oil Volume		6.5L
Hydraulic Oil Volume		11L

Main Features
1) Walk Behind Power Screed can pave the concrete base, trowel the concrete and vibrate it to smooth. The work efficiency will be improved because the machine can set the height of elevation automatically, and the operator can finish the working area fast and efficiency.
2) This product is small, light, easy to operate, with reasonable price, 13HP of Honda petrol engine ,strong start capability, and run more smoothly.
3) Adopts imported Leica laser transmitter and Moba receiver, which have good performance.
4) Two kinds of tyres optional.laser screed
Detailed Images

---
