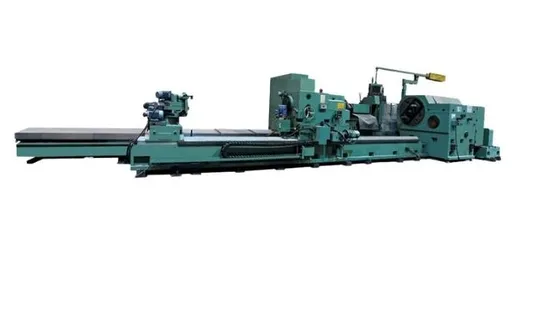

Wheelhead Moving PLC (CNC) Cylindrical Grinding Machine

Product Description

Specificities:
MCW stands for PLC supporting grinding machineMKW for CNC supporting grinding machine, MCDfor PLC Center fixed grinding machine, MKD forCNC Center fixed grinding machine.Center fixedgrinding machine can be used to grind heavyparts, easy to operate, high efficiency.
The structure of the machine adopts the structureof the wheel head movable cylindrical grindingmachine,the workpiece only makes rotatingmotion, the wheelhead dragging plate(Z axis)makes longitudinalreciprocating motiononthe body of the dragging plate, the grindingwheelhead(X axis)makes transverse feedingmotion on the dragging plate, and the operationposition is arranged on the structure of the
dragging plate.MCW1380A series cylindricagrinder bed structure for the workpiece bed andtowed bed body cast into one, the diameter of 800or more external grinder bed and towed bed bodyseparation structure.
The spindle of the wheelhead adopts high rigiditydynamic and static pressure spindle. which hashigh rotary precision, good rigidity and highgrinding quality.
The headstock and tailstock spindles of the Centerfixed grinding machine tool are all rotary livingspindles, and the spindles are supported by ultra-precision rolling bearings, with strong lubricationof thin oil, high positioning accuracy and largebearing capacity.

Model No.	MC(K)D13100/20	MC(K)D13125/20		MC(K)D13160/20
Item No.
General capacity
Distance between centers	6000,8000,10000 mm	6000,8000,10000 mm		6000,8000,10000 mm
Dia.Ground(O.D)	240~800 mm	300~1250 mm		350~1600 mm
Dia.length ground(O.D)	6000,8000,10000 mm	6000,8000,10000 mm		6000,8000,10000 mm
Max. ground weight between center	20000 kg	20000 kg		20000 kg
Max. ground weight with support rest	20000 kg	20000 kg		20000 kg
Range of rest supporting	450~650	450~750		450~650/650~900
Workhead
Center taper(MT)	Ø120(1:4)	Ø120(1:4)		Ø120(1:4)
Spindle speed	5~50r/min	5~50r/min		5~50r/min
Wheelhead
Hand feed per.gra	0.002,0.02,0.2 mm	0.002,0.02,0.2 mm		0.002,0.02,0.2 mm
Max. dimension of wheel(ODxWxlD)	900x75x305 mm	900x75x305 mm		900x100x305 mm
Wheel peripheral velocity	35 m/s	35 m/s		35 m/s
Cross saddle
Hand feed per.rev	1,0.1,0.001 mm	1,0.1,0.001 mm		1,0.1,0.001 mm
Longitudinal speed range of table	0.005~4 m/min	0.005~4 m/min		0.005~4 m/min
Tailstock
Center taper(MT)	Ø120(1:4)	Ø120(1:4)		Ø120(1:4)
Quill travel	150(manual) mm	150(manual) mm		150(manual) mm
Cooling system
Flow	200 L/min		200 L/min		200 L/min
Motor
Wheelhead motor power	55 kw	55 kw		55 kw
Workhead motor power	55 kw	55 kw		55 kw

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
