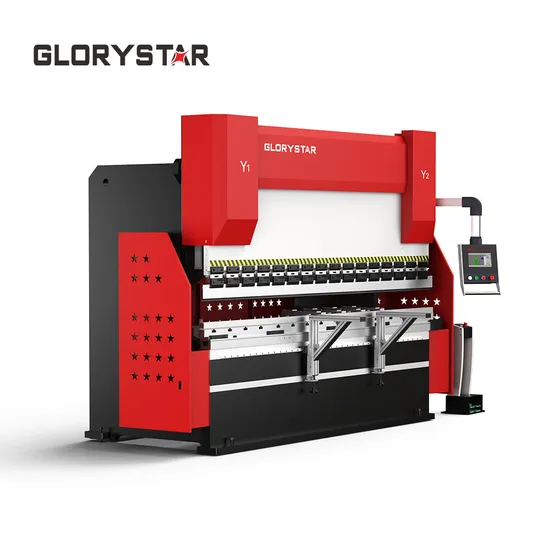

High Precision CNC Hydraulic Press Brake with Ce 6+1 Axles

US$10,000.00-30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
GLB-16032
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Model No.
Glb-16032
Length of Table
3200mm
RAM Sroke
200mm
Speed
>8 Times/Min
Max.RAM Open Height
400mm
Net Weight
9300kgs
Transport Package
by Plywood
Specification
CE, SGS, ISO, FDA
Trademark
GLORYSTAR
Origin
Dongguan City, China
HS Code
8462219000
Production Capacity
200 Sets/ Year

Product Description

Hydraulic CNC Press Brake Bending Machines
>>> Features1) CNC hydraulic bending machine is a high precision and high efficiency sheet metal bending equipment. The structure design is advanced and reasonable, with superior parameters and performance.
2) Utilizing word-leading bending system, hydraulic system, precise ball screw and guide-rail, premium processed parts, the overall performance is reliable,with various standard dies for option.
3) Equipped with full range of bending functions and automatic programming software, combining with excellent automatic inspection, protection and self diagnosis functions.
4) CNC hydraulic bending machine has professional control system, proportion servo valve and direction valve to automatically calculate, adjust main pressure and compensation.
5) According to requirements of sheet metal processing by, it can automatically process different size and shape of work pieces and any curve profile, and some special processing.
Easy OperationThe Italian ESA professional CNC system has powerful functions, stable performance, simple and easy operation.
High PrecisionEquipped with an Italian famous brand grating ruler, the resolution can reach 0.005mm.
StableAdopted with German Bosch Rexroth whole professional hydraulic system, the split valve group is installed on the top of the cylinder, with high response frequency and stable and reliable performance.
Energy-SavingThe main motor can be optionally equipped with a high-performance servo motor, and the motor speed can be controlled in real-time to reduce the unless work of the oil pump, reduce the oil temperature and noise, and save energy by more than 50%.
>>> Technical Data
Model ParametersGLBGLBGLBGLBGLBGLBGLBGLB
1003216032160412003220041250322504140041
Nominal force(KN)10001600160020002000250025004000
Length of workbench(mm)32003200410032004100320041004100
Distance among columns(mm)27002700360027003600270036003300
Maximum height(mm)460460460500500500500530
Slider's trip(mm)200200200240240240240240
Throat depth(mm)400400400400400400400430
X-axis trip(mm)650650650650650650650650
R-axis trip(mm)150150150150150150150150
Slider's speed(mm/s)Downward speed18016016012012011011080
Working speed109988888
Return speed150130130100100909070
Main motor(kW)7.511111515151530
Tank capacity(L)3503804804804804804801000
Outline size(mm)Length with doors34003400430034004300340043004300
-3850-3870-4750-3885-4765-3885-4765-4825
Width19902035203521652165217521752335
Height25802700270028102810286528653420
Weight(kg)830010000115001200013500130001450023000

>>> Advantages
A. All-steel welding structure, entire tempering treatment, better rigidity and higher strength.
B. Welding on professional worktable,it ensures the verticality, parallelism and straightness.
C. The frame is stress-relief treated in automatic tempering furnace for 48 hours, temperature changes as 200↗650↘ 200(ºC), to ensure frame stability and precision. The surface is treated with sand blasting and environmental primer.
D. Adopting world top machine tools - Japan TOSHIBA BSF-150 floor type boring milling machining center to finish the frame at one-time, which farthest assures the precision and stability under long time operation.
After-sale Service
Installation and debugging
Technicians can be sent to the factory for training (free of service fee for the first time). Customers only need to provide accommodation for engineers.
Training
Free of charge for training within warranty. But customers need to take charge of the cost for accommodation, airfare and visa fees.
24/7 online service
All our laser equipment is provided with 12 months warranty. Glorystar Laser offers free maintenance or replacement service if something is wrong with the equipment under warranty. If it is out of warranty,Glorystar Laser will send engineers to your factory as soon as possible and only charge the cost of accessories.
Accessories supply
IPG laser source is 2 years. Other accessoris is one year except for optical and consumable accessoris. Prolong serve is always available for option. Free of charge for fixing and changing accessoris within warranty. But only changing accessoris, the freight should be charged by customers.
Remote diagnosis
Glorystar Laser can check the running status of the customer's laser cutter through our remote maintenance system. Our technicians can perform troubleshooting via remote access instead of on-site diagnosis and maintenance, it can save you a lot of time.
