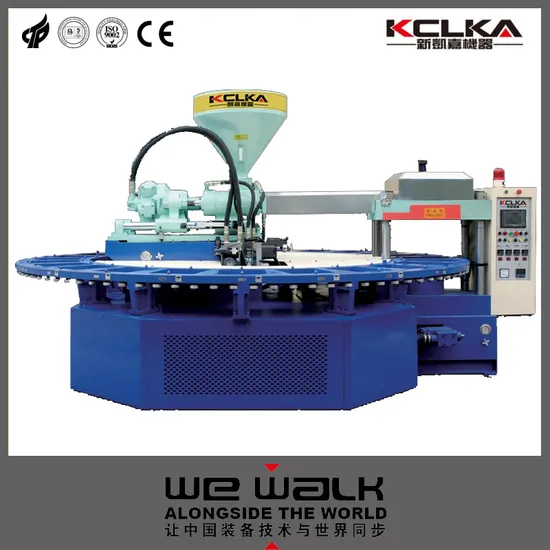

New Brand Slipper Pcu PVC Air-Blow Injection Moulding Shoe Machine

Product Description

Item	Unit	Parameter
Raw material		PVC.TPR
Work Stations	Stations	24
Mould-clamping Pressure	Kg	70000
Space to hold mould	Mm (LxWxH)	400*200*220 / 600*280*230
Diameter of Screw	Mm	60
Max. Injection Volume	Cm3	758 / 785
Injection Pressure	Kg/cm2	550
Diameter of Disc	m	3.60
Temperature Control Section	Sections	4
Electric Heating Energy of Material tube	Kw	8.78 / 9.18
Motor	Kw/Hp	18.5/25
Total Electricity Consumption	kw	29
Machine Size	mm	6200*3530*2300
Output	Pairs/day	2500
Machine Weight	kg	8800

Data are not binding and may be changed without prior notice.
1 most of mechanical movements, covering ranges from injection, feeding, disc-rotating to mould-clamping, could be inputted into PLC, which ensures more accuracy for mechanical movements.
2 equipped with digital-type proportional controller so as to control mould-clamping pressure, injection pressure and feeding pressure.
3 unique mechanical structure, which allows to place big mould in size; at the same time, the machine is fitted with mould cooling device which is easy to operate, producing product more perfectly.
4 with the help of blowing system, the machine can have product lightweight, soft and own a polished looking in surface. Besides, the weight can be 20%-30% lower than traditional production way.
5 recycled material can be mixed together to produce products, quality of which can be comparable with new product made of purely new material.
FAQ

Delivery date:
Within 25 days After receiving the 30% earnest money.

Payment term:
Advance payment at order 30%, 70% before shipment

Delivery State:
Machines were taken apart and packed in suitable package that fits container shipping

For the machine experiment and installation, our technician will be sent to your
factory. And you are requested to afford the cost of their trip and payment .
Our technician will manage all the machine things for you and at the same time train your workers on
how to use and maintain the machine.

Guarantee Time:
One-year warranty and lifelong service. During guarantee period, the cost of any spare parts or new accessory should be borne by the seller, and the freight for delivery of spare parts will be on the buyer's account.

---
