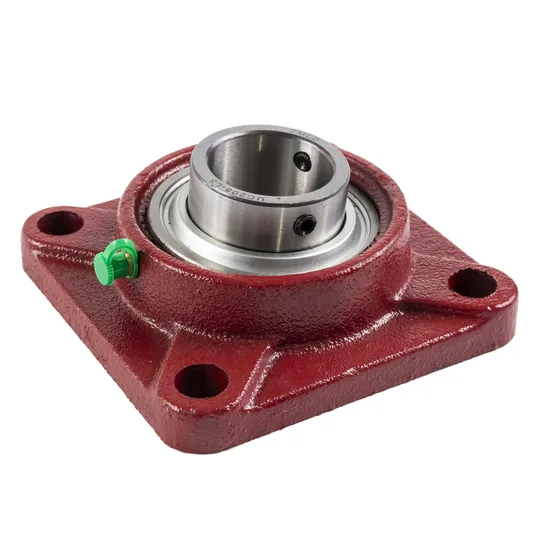

Mounted Bearing Units with Qt450 Nodular Cast Iron Housing Red Painted for Cultivator Ucf207-L3

Product Description

Type No.	Metric Bore Size	UCF201 up to UCF218
		UCF305 up to UCF328
	Inch Bore Size	UCF201-8 up to UCF218-56
		UCF305-14 up to UCF320-64
Housing	Cast Iron	Customized Shape
		Standard Duty, Concave Bottom
		Heavy Duty, Flat Bottom
	Ductile Iron	Standard Duty, Concave Bottom
		Heavy Duty, Flat Bottom
Precision	ABEC-1, ABEC-3
Vibration & Noise	Z1, Z1V1, Z2V1, Z2V2
Clearance	C0, C1,C2,C3,C4
Fitness of Bearing & Housing	H7>J7>K7
Working Temp.	-20ºC up to 120ºC (high working temp is acceptable)
Lubrication	Chinese Greatwall#2, SRL,PS2, etc..

The bearing unit is a combination of a radial ball bearing, seal, and a housing of high-grade cast iron or pressed steel, which comes in various shapes. The outer surface of the bearing and the internal surface of the housing are spherical, so that the unit is self-aligning. The inside construction of the ball bearing for the unit is such that steel balls and retainers of the same type as in series 62 and 63 of the deep groove ball bearing are used. A duplex seal consisting of a combination of an oil-proof synthetic rubber seal and a slinger is provided on both sides.
The bearing units have various types of perfect sealing devices and can operate satisfactorily under hard working conditions,especially for machines operated in dusty or muddy surroundings.Thus,they are widely used in agricultural machinery,construction machinery,textile machinery,foodstuff machinery and conveying devices,etc..
Q1: Can I get a free sample?
A1: We provide samples free in freight collected. For special samples requirement, please contact us for more details.
Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q3: What is your brand and packing way? Can you produce my brand and packing?
A3: Our brand is SGC and our own packing materials. We can make your brand. For more details, please contact us.
Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 45-60 days after receipt of the deposit.
Q5: Are you manufacturer or trading company?
A5: We are manufacturer and exporter. We provide all kinds of OEM services for clients around the world.
Q6: Where is your main market?
A6: We export to the North America, Mexico, Australia, South-east Asia, Europe, U.A.E., Turkey, and other countries.
Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price.
3 .Standard package to ensure the safe transportation.
4. Professional service.
Why choose us?
1. Production
Qualified production, competitive price, professional service.
2. Quality
All products are inspected 100% before shipment by relative testing equipments.

---
