Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
8-Station Turret CNC Lathe
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Name
GSK Heavy Duty Automatic CNC Slant Bed Lathe Machi
CNC Controller
GSK/Siemens/Fanuc CNC Controller
Max. Turning Length
800mm
Spindle Bore Diameter
86mm
Tool Turret
12-Station Turret
Guideway
Taiwan Linear Guideway
Tailstock
Hydraulic Tailstock
Transport Package
Wooden Case
Production Capacity
100 Sets Per Month
Product Description

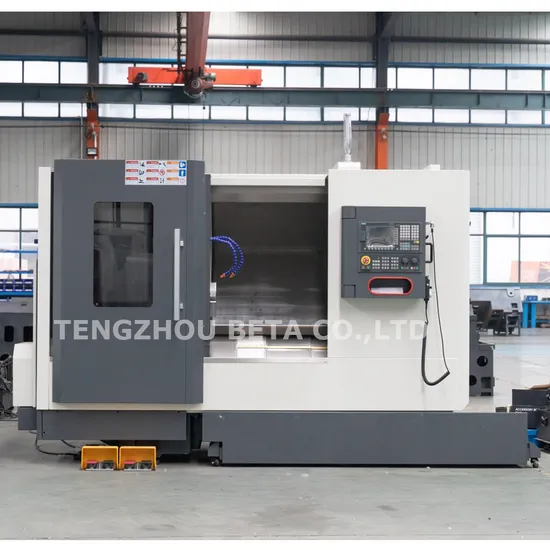

TCK500/800 GSK Heavy Duty Automatic CNC Slant Bed Lathe Machine With Fanuc Control
Standard accessories:
Slant bed 45 degree, Spindle bore diameter 86mm,
Max.swing over bed 560mm, Max. Turning length 800mm,
CNC controller system,
main spindle servo motor 15kw,
Spindle unit speed 3000rpm,
Taiwan linear guideway,
10 inch hollow type hydraulic 3-jaw chuck,
8-station servo turret,
One-piece bed,
Hydraulic tailstock,
Chip conveyor with cart,
Automatic cooling and lubrication system,
Work light, Alarm light
Optional accessories:
Siemens/Fanuc CNC controller,
| Model | Unit | TCK50A x 500 | TCK50A x 800 |
| Max. Swing over bed | mm | Φ560 | Φ560 |
| Max. Swing over carriage | mm | Φ260 | Φ260 |
| Max. Turning length | mm | 500 | 800 |
| Chuck size | inch | 10 inch | 10 inch |
| X-axis travel | mm | 240 | 260 |
| Z-axis travel | mm | 540 | 900 |
| Max. Spindle speed | rpm | 3000rpm | 3000rpm |
| Spindle speed change | | Stepless | Stepless |
| Spindle nose | | A2-6 | A2-8 |
| Spindle bore diameter | mm | Φ66 | Φ86 |
| Through bar capacity | mm | Φ55 | Φ75 |
| Slant bed structure | degree | 30 degree | 45 degree |
| Rapid moving speed | m/min | X:18 Z:18 | X:18 Z:18 |
| Cutting feeding | mm/min | 1-15000 | 1-15000 |
| X/Z-axis motor torque | NM | 7.5/7.5 | 10/10 |
| Main motor power | KW | 11 | 15 |
Standard Turret
| | Standard :12 station hydraulic turret | Standard :8 station servo turret |
| Tool shank size | mm | 25x25 | 25x25 |
| Quill diameter | mm | 70 | 90 |
| Tailstock quill taper | | MT5# | MT5# |
| Max. Travel of tailstock | mm | 450 | 750 |
| Total power capacity | KVA | 18 | 18 |
| Coolant tank | L | 100 | 100 |
| Overall dimension(L*W*H) | mm | 2800*1850*1890 | 3250*1860*2000 |
| Machine weight | KG | 3900 | 4300 |
>>
