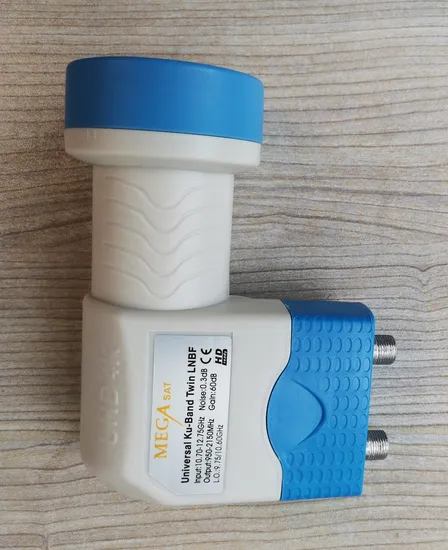

High Gain 4K New Design Ku Band Twin LNB

Product Description

High gain new design ku band twin lnb
Futures:
1. Full coverage of Ku-Band for Analog and HD Digital reception
2. Low noise figure
3. Easy installation
4. Low power consumption
5. High quality weather protection
SPECIFICATIONS:

Item	Specification	Item	Specification
Input Frequency Range	Low Band:10.70~11.70GHz	Gain Flatness	±0.5dB/26MHz
	High Band:11.70~12.75GHz	Cross POL. Isolation	25dB(Typ.)
Output Frequency Range	Low Band:950~1950MHz	Image Rejection	40dB(Min.)
	High Band:1100~2150MHz	Output VSWR	2.0:1(Max.)
L.O. Frequency	Low Band:9.75GHz	P1dB	0dBm (Min.)
	High Band:10.60GHz	DC Current Consumption	80mA(Typ.)
L.O. Frequency Stability	±1.0MHz (Max.)@+25ºC	Low/High Band Switching	Low Band:0Hz
	±2.0 MHz (Max.)@-30ºC~+70ºC		High Band:22KHz±4KHz
L.O. Phase Noise	-60dBc/Hz@1KHz	POL. Switching Voltage	10.5~14.0V @Vertical
	-80dBc/Hz@10KHz		16.0~20.0V @Horizontal
	-100dBc/Hz@100KHz	Relative Humidity	0%~95%
Conversion Gain	60dB(Typ.)	Operating Temperature	-30ºC~+70ºC
Noise Figure	0.6dB(Typ.)	Connector Type	75Ω Female Connector

FAQ:
Q1:Are you a trading company or manufacturer?
We are professional manufacturer for audio&video cable . also we supply of different electrical and electronic items
Q2: why will you choice us :
more than 15 years of professional teams will give you good quality products ,good service ,and reasonable price .
Q3:Can we have our logo or company name to be printed on your products or the package?
We offer OEM , ODM . our designer can make special design for you .
Q4: Is the MOQ fixed?
The MOQ is flexible and we accept small order as trial order.
Q5:Can I have a visit to you before the order?
Sure,welcome to visit our company ..
our company is only one hour by train from shanghai

---
