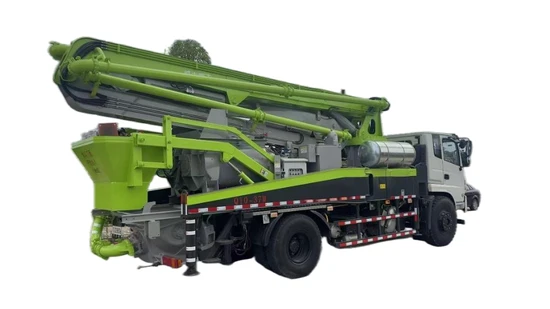

Concrete Pump Truck 49m with Optional Chassis Truck-Mounted Hydraulic Truck Crane

Product Description

Product Description
Our main products are:

There are over 90 varieties in more than ten series, including tower cranes, construction elevators, concrete mixers, concrete batching machines, concrete mixing plants, trailer concrete pumps, vehicle mounted concrete pumps, concrete mixing trucks, concrete boom pump trucks, asphalt mixing plants, stabilized soil mixing equipment, rollers, excavators, fully hydraulic rotary drilling rigs, garbage compactors, etc.

The company has passed the 9001 quality system certification,3C mandatory ,EU certification.
About customized: yes, we can customized as customer require.

Product Parameters

pump truck 44 meter HB-44
Vehicle parameters	vehicle size	L11500*W2550*H3980	mm
	weight	33800kg
Arm support leg parameters	Vertical height of boom	43.2 meter
	Horizontal length	38.7meter
	vertical depth	30.6meter
	Min. unfolded height	12.6 meter
	first arm	length (mm)	8600
		corner	90°
	second arm	length(mm)	7050
		corner	180°
	section 3 arm	length(mm)	7050
		corner	180°
	Section 4 Arm	length(mm)	8200
		corner	196.5°
	Section 5 Arm	length(mm)	8300
		corner	229°
	Rotation angle of turntable		±270°
Pumping system parameters	Theoretical maximum conveying capacity	low pressure m3/h	120/160
	pumping pressure	low pressure/high pressure Mpa	8.2/12
	Pumping frequency	low pressure Times/minute	28/min.
	Inner diameter of conveying cylinder mm		230/260*1650
	Main cylinder inner diameter mm		140*1650
	hydraulic system		Open hydraulic system
	System oil pressure Mpa		32
	Fuel tank capacity L		600
Main configuration and model	main oil pump		Ningbo Heideke/German Rexroth
	Transfer case		Zhuzhou Gear Co/Stiebel
	Arm pump		Ningbo Sikes/German Rexroth
	Reducer		Italian R
	multi-way valve		Ningbo Norm a/HAWE
	remote control
Chassis parameters	Chassis brand and model		Dongfeng/Sinotruk
	Number of chassis bridges		three
	Maximum net power of the engine KW/rpm		400 horsepower
	emission standard		national 6
	Fuel tank capacity L		400

Packaging & Shipping
Company Profile
About us
The Feibo industry, a sourcing factory on construction machinery found in 2012, located in Hunan, Changsha city.
Have passed the ISO9001:2008, TSI16949 certificate ,CE , and so on.
Professional supply for mechanical equipment, Concrete pump, pump truck, fabric machine and some auto parts, accessories and so on, for more than 10 years.
Strict QC team over 10 members, covering whole stages of production running.
SPARE PARTS
Certifications

Our Advantages
FAQ
1. who are we?We are based in Hunan, China, start from 2012,sell to North America(15.00%),Southeast Asia(14.00%),Mid East(13.00%),South America(12.00%),Africa(11.00%),Eastern Asia(10.00%),Eastern Europe(9.00%),Central America(9.00%),South Asia(3.00%),Northern Europe(2.00%),Oceania(1.00%),Western Europe(1.00%). There are total about 101-200 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us? construction machine, concrete pumps, concrete pump truck, digging machine, used concrete pump truck, garden machine and so on4. why should you buy from us not from other suppliers?1. Strong production capacity: large-scale production. 2. Leading technology: Product performance and quality are competitive. 3. Rich experience: Provide professional solutions and customized products.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
