Industrial Furnace Non-Contact Thermo Temperature Meter Pyrometer 400 to 3000 Degree

Product Description

Industrial Furnace Non-contact Thermo Temperature Meter Pyrometer 400 to 3000 degree Product Description
WRIRT wide-range infrared thermometer provide superior accuracy in demanding industrial process applications. It measures target temperatures ranging from 400ºC to 2600ºC and from 700ºC to 3000ºC. WRIRT wide-range infrared thermometer features an advanced electro-optical design, digital electronics and an intuitive easy to use push button interface-all combined in a rugged, compact aluminium housing. The sensor can be easily set up for stand alone operation or configured for a multi sensor network. The 4-digit LED display provides a convenient on-line indicator of the thermometer's operating status and easy operation of setting the parameters.
The sensor features through-the-lens optical sighting.The optical resolution is 300:1 and the smallest spot size is 2mm.The emissivity is 0.10 to 1.00 in 0.01 increments.
WRIRT wide-range infrared thermometer can be equipped with a compact, value-priced monitor that configures the functions via the front panel. It also includes optional bidirectional RS485 serial communications between the thermometer on the factory floor and a personal computer in the control room. This enables remote setup, monitoring and maintenance, especially valuable for installation in hard-to-reach locations.
WRIRT wide-range infrared thermometer is designed for the temperature measurement in the sealing arrangement such as vacuum furnace, plasma furnace, microwave-heating, and so on. It is also valuable for non-ferrous processing and non-metallic material manufacture.

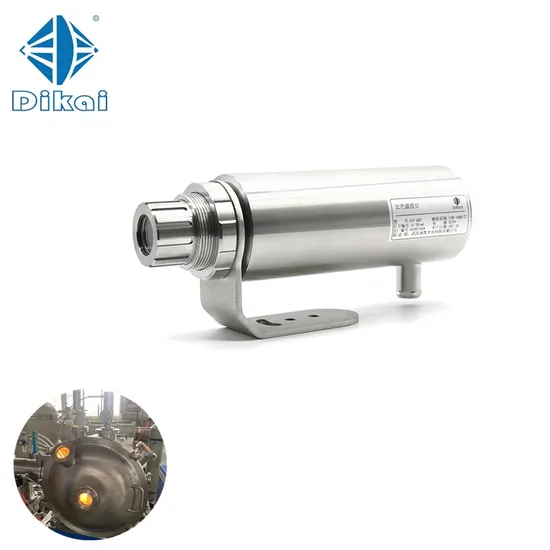

Detailed Photos
Application
Product Parameters

Model	WRIRT426	WRIRT730
Temperature range	400-2600ºC	700-3000ºC
Optical resolution	300:1
Spectral reponse	1-1.7µm	0.4-1.1µm
Accuracy	±0.5%(FS)
Repeatability	0.2%
Response time	≤5ms
Analog Output	0-20mA or 4-20mA or 0-5V
Digital Output	RS485
Ambient operating range	0-70ºC
With air cooling	120ºC
With water cooling:	175ºC
Vibration	GB/T2423.8-1995
Dimensions	L:max185mm;Φ58mm
Housing:	Stainless Steel

Certifications
Packaging & Shipping
Company Profile
FAQ
FAQ 1) Are you a trading company or a manufacture factory?
We are the direct Factory, but we have international trading ability. We offer high quality products with proper prices. 2) How long has your company been working on Infrared Thermometers? Over 15 years experience in this field. 3) What payment terms can you accept? Our company can accept T/T, L/C, Western Union, Paypal payment. ... 4) After an order is placed, what is the delivery time? Normally within 7 days after payment received. 5) Can your company accept customization? Yes, it is no problem, we have our own R&D team , can research and develop customized model as you require. 6) What's the MOQ of your product? Our MOQ is 1 pc, but our prices base on the quantity. If you purchase more at one time, the unit price will be cheaper. 7) How to make an order ? You can tell us the temperature range you need or where to use the thermometer, our technician will suggest the most suitable model according to your needs. After paying to our account, we will arrange the production and delivery ASAP.
