US$8,230.00-19,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Cutter Material
High-Speed Steel
Finished Surface
Gear Process
Compressive Strength (For Crushing)
<100MPA
After-sales Service
Video Technical Support, Online Support
Transport Package
Metal Frame
Trademark
RAY ATTACHMENTS
Production Capacity
100 Set/Week
Product Description

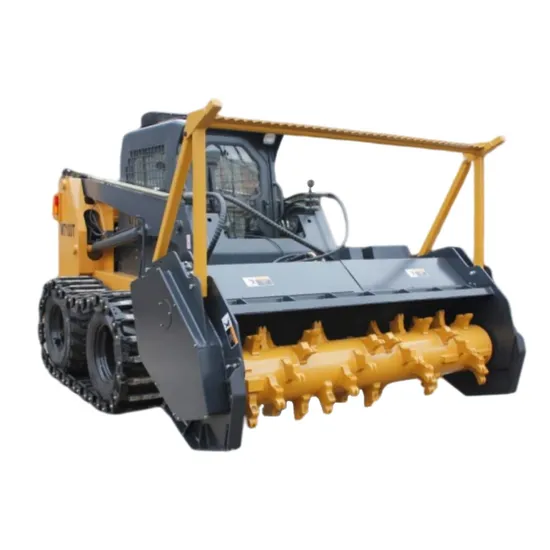

Mulcher with newly blades, applied for the grass, trees and shrubs cultivation; compact design for easy operation; equipped with a pressure gauge and oil cooling radiator to better protect the hydraulic system; removable blade knives with rapid replacement function. Fit for the skid steer loaders with high flow.
Specitification
Skid Steer Loader Mulcher Specification
Model | RM-60 | RM-72 | RM-84 |
Length (mm) A | 900 | 900 | 900 |
Width (mm) B | 1860 | 2160 | 2410 |
Height (mm) C | 1680 | 1680 | 1680 |
Transport Height (mm) D | 1080 | 1080 | 1080 |
Working Width (mm) E | 1550 | 1850 | 2100 |
Weight(Kg) | 940 | 120 | 1200 |
Flow(L/Min) | 110-150 | 110-150 | 110-150 |
Pressure (Mpa) | 19-21 | 19-21 | 19-21 |
Required Host Machine Lifting Capacity (T) | >1 | >1.1 | >1.2 |
Mulching the Ground Depth (mm) | 100 | 100 | 100 |
Cutting Blades Numbers( Pcs) | 40 | 48 | 56 |
Required Host Machine Horsepower | Aboved 70Hp | Aboved 80Hp | Aboved 100Hp |
Excavator Mulcher
Model | REM60 |
Size | 60 inch |
Length (mm) | 900 |
Width(mm) | 1860 |
Height (mm) | 1680 |
Transport Height (mm) | 1080 |
Working Width (mm) | 1550 |
Weight(Kg) | 985 |
Flow(L/Min) | 110-140 |
Max.Pressure (Mpa) | 21 |
Required Host Machine Lifting Capacity (T) | >1 |
Mulching the Ground Depth (mm) | ≤100 |
Cutting Blades Numbers( Pcs) | 40 |
Required Host Machine Horsepower | Aboved 70Hp |
Carrier Tonnge | 10-20T |
Application
1. CANALS, RIVERS, PONDS, FENCE LINES 2. MAINTENANCE OF NATURAL AREAS 3. ELECTRICAL POWER LINES 4. ROADSIDE MAINTENANCE 5.UNDERBRUSH 6. CLEANING UP OF PLANT RESIDUES 7. WIND FARMS
Details Images
Excavator Mulcher Freture: 1.Cut Through Standing Trees. 2.Mulch Slash Piles. 3.Grind to the Surface. 4.The rear of the unit is guarded by a chain curtain so standing brush enters and mulched debris exits.
Company Profile
RAYMOND is a factory with authorized Imp. & Exp. right which including two companies,Raymond Precision Machinery Co.,Ltd and Raymond International Trading Co.,Ltd, located in Changzhou City,Jiangsu Province,China,Factory building areas cover around 20,000 Square Meters.Raymond Precision Machinery Co.,Ltd was established in 2002,committed to focus on the development,production and sales of construction machinery and their spare parts.
>>
