| US$2,080.00-4,200.00 | 10 Pieces (MOQ) |

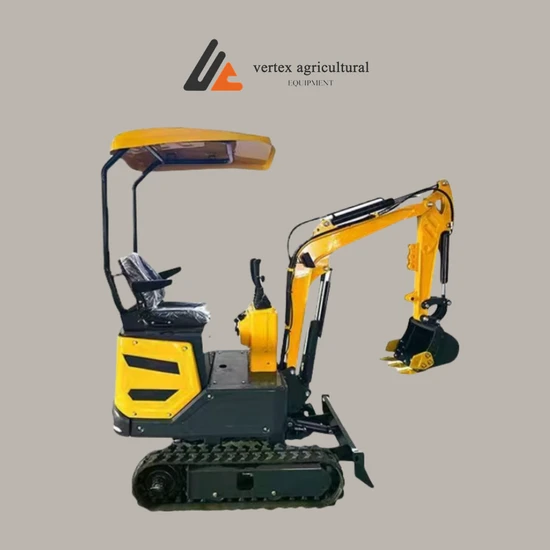

| 1 | Name | Crawler excavator |
| 2 | Model | 15 |
| 3 | Operation weight | 1500KG |
| 4 | Power | 7.6kw/12HP |
| 5 | Bucket capacity | 0.03CBM |
| 6 | Rotation speed | 11r/min |
| 7 | Overall dimension(L*W*H) | 2460mm*1000mm*2240mm |
| 8 | Crawler grounding length | 1235mm |
| 9 | Crawler width | 180mm |
| 10 | Max digging height | 2490mm |
| 11 | Max discharge height | 1750mm |
| 12 | Max digging depth | 1800mm |
| 13 | Max digging radius | 2400mm |
| 14 | Mini turning radius | 1190mm |
| 15 | Platform clearance to groud | 325mm |
| 16 | Swing angle | 360° |
| 17 | Climbing gradient | 30° |
| 18 | Bulldozer Max depth | 170mm |
| 19 | Bulldozer Max raising height | 180mm |
| 20 | Walking speed | 2.5km/h |
| Power plant | Usually equipped with a small diesel engine or electric motor, small excavators mostly use efficient and energy-saving diesel engines to provide power support for excavators |
| Driving gear | There are mechanical transmission, hydraulic transmission and other ways, hydraulic transmission is widely used, can achieve the smooth transmission of power and precise control, so that the working device is flexible and accurate |
| Walking device | Generally divided into track type and wheel type. Crawler walking device has large ground area, strong grip, and can adapt to complex terrain, such as good stability when working on muddy and soft ground; Wheeled walking devices move fast, flexible, suitable for relatively flat pavement and urban roads and other working environments |
| Working device | It is composed of boom, bucket rod, bucket, etc., and driven by hydraulic cylinder, it can complete digging, loading, unloading and other actions. Some small excavators are also equipped with deflecting boom or bucket rod, which can work in small Spaces |
| Small and flexible | The fuselage size is small, the machine weight is light, the turning radius is small, can be in the narrow streets of the city, indoor, orchards, greenhouses and other space restricted places of operation, such as Zoomlion's micro excavator, the tail turning radius is less than the width of the track, can realize the true tailless turning |
| Easy to operate | Joystick layout is reasonable, the operation is light and flexible, easy to use. Some advanced small excavators are also equipped with intelligent operating systems, such as automatic leveling, automatic mining and other functions, which reduce the difficulty of operation and improve work efficiency |
| versatility | It can be equipped with a variety of fittings, such as crushing hammer, wood grabber, auger, plate tamper, etc., to achieve a multi-purpose machine, which can meet the needs of different working conditions, such as digging trenches and crushing roads in municipal engineering, digging pits in agricultural and forestry orchards, planting trees, transporting wood and other operations |
| Convenient transportation | Small size, light weight, easy to transport, can be transported by small trailers, trucks and even pickup trucks, reducing transportation costs and transition time |
| Municipal engineering: used for the construction and maintenance of urban roads, squares, parks, etc., such as digging trenches, burying pipelines, repairing roads, etc. The flexibility of small excavators allows them to operate without disrupting traffic and the normal operation of cities. |
| Building construction: It plays a role in the excavation of the foundation of the building, the demolition of the interior decoration, and the construction of the basement, especially in the narrow space area, such as Trinity micro-excavation can enter the basement construction. |
| Agricultural and forestry orchards: suitable for digging and fertilizing orchards, planting trees, pruning branches, as well as ditching, land preparation, irrigation channel digging and other operations, will not cause extensive damage to crops and fruit trees. |
| Interior decoration: It can be used for dismantling indoor walls, leveling the ground, handling building materials, etc., compared with manual operation, the efficiency is greatly improved, and the labor intensity is reduced. |
| 1. How long is the delivery time? According to your size and system, the delivery time is usually 15-60days. 2. Can you supply sample? Small parts can be supplied, but you should pay the express cost. 3. Can your company supply design? Our company can give g design according to your land and plan after deposit. And we can give simple drawing before signing contract. 4. How to install ? Firstly we prepare the material and send the material to your city. After your customs clearing, we send 2-4 engineers or all workers to guide to install. If you want to save money, we only send engineers, and you match local workers. If you think it is hard to build the greenhouse, we also can send engineers and workers to install for you. 5. When installing, what cost should we pay? Our engineers and workers visas and round-trip tickets, their foods and accommodation, their communication |
