High Quality Electric Industrial Semi Submersible Vertical Sump Sewage Pump Heavy Duty Sp Spindle Sand Mud Gravel Slurry Centrifugal Water Pump for Mining

Product Description

High Quality Electric Industrial Semi Submersible Vertical Sump sewage Pump Heavy Duty Sp Spindle Sand Mud Gravel Slurry Centrifugal Water Pump for Mining

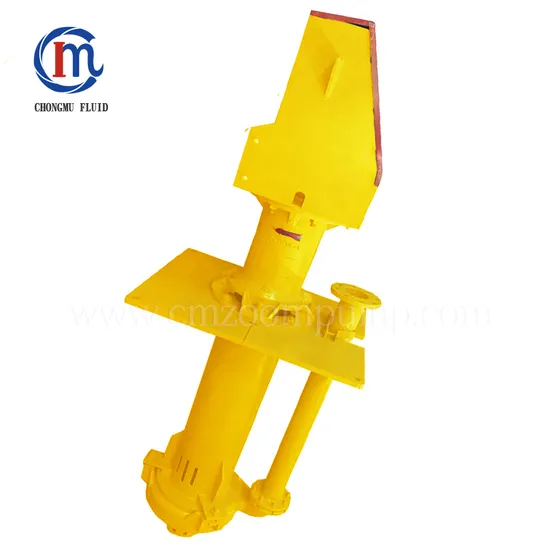

The CSP(R) sump pump is a vertical centrifugal slurry pump, immersed in the liquid, the pump inlet is vertically downward, and the outlet is vertically upward on the other side of the pump.
The pump is mainly composed of lower filter screen, pump body, impeller, shaft, guard plate, bracket and other parts.
The upper part of the pump is supported by a bearing; the pump is installed under the liquid without any shaft seal and shaft seal water, and it can work normally under conditions of insufficient suction.
The flow parts are made of wear-resistant materials, which are used to transport abrasive, coarse particles, and high-concentration slurry.
It is mainly suitable for conveying corrosive, coarse particles and high-concentration slag slurry. It is widely used in metallurgy, mining, coal, electric power, building materials, environmental protection and other departments.
The transmission type of this pump is BD and DC, namely belt drive and direct drive.
The depth of immersion in the liquid can be determined according to the actual needs of users within the standard size range.
Seen from the direction of the pump suction port, it rotates counterclockwise.
CSP(R) type Sump Pump Clean Water Performance Table:

Type	Allowable Mating Max. Power (Kw)	Range Of Performance				Impeller
		Capacity/Q	Head /m	Speed /rpm	Max Efficiency /%	No. of Vanes	Diameter /mm
		m³/hr
40PV-CSP	15	19.44-43.2	4.5-28.5	1000-2200	40	5	188
65QV-CSP	30	23.4-111	5-29.5	700-1500	50	5	280
100RV-CSP	75	54-289	5-35	500-1200	56	5	370
150SV-CSP	110	108-479.16	8.5-40	500-1000	52	5	450
200SV-CSP	110	189-891	6.5-37	400-850	64	5	520
250TV-CSP	200	261-1089	7.5-33.5	400-750	60	5	575
300TV-CSP	200	288-1267	6.5-33	350-700	50	5	610

Structure:
Application:
Company:
Shijiazhuang Chongmu Fluid Machine Co., Ltd is a modern pump company specializing in production, research and development, sales and service. We have been in the centrifugal pump industry for more than 20 years. We have a modern standard pump room and a processing workshop with a variety of advanced processing equipment. The whole process from casting to assembly is one-stop closed-loop production. The team of experienced production R&D engineers is professional and efficient. Choose us, professional team, professional equipment, trustworthy.
Chongmu Main products:
1.Slurry pumps
2.Gravel pumps
3.ZJQ submersible slurry pumps
4.Inline pumps
5.Multi-stage pumps
6.Split case pumps
7.Sewage pumps
8.Mixed flow pumps
9.Self priming pumps
10.Spare parts
Our Workshop:
FAQ:
1.What information do you need to offer a quotation?
Liquid:
Pump Capacity: m³/h or L/S
Pump Head: M
pH:
Specific of gravity:
Voltage: V
Frequency: Hz
2.Are you the manufacturer or trading company?
We are real manufacturer for centrifugal pumps,and we have been in this industry for more than 20 years.
3.Can we pay a visit to your factory?
Yes.We warmly welcome you to visit our factory.
4.What is the MOQ?
There is no MOQ.
1 set of pump,or 1 piece of spare part is ok.
5.Do you accept OEM orders?
Yes.Send us the drawings,then we can produce for you.

---
