Metal Pipes and Plate Laser Cutting Equipment Laser Worker China Metal Manufacturer

Product Description

Laser Cutting Machines of a Great Variety--HSG Laser HSG Laser can serve global users with 20+ kinds of machines that are suitable for most materials needing to be cut, including sheet metal laser cutting machine, sheet & tube laser cutting machine, tube metal laser cutting machine, bending machine and welding machine. The following is an introduction of a type of Single Platformm Sheet and Tube Laser Cutting Machine:

HI-TECH ENTERPRISE IN CHINA HSGLaser, founded in 2006 as a hi-tech enterprise focusing on R&D, production and sales of laser equipment,
is dedicated to serve global customers with intelligent metal forming solutions. Serve 100+ Countries and Regions HSG Laser has built 4 standardized manufacturing bases in China, 10 branches/subsidiaries/sub-subsidiaries
and 30+ service outlets overseas. Now, we have a total staffff of 1700+ employees, incl. 221+ R&D personnel
and can produce 5000 sets each year by right of 80000m2 production area. Professional R&D Team Our R&D team values high-power machines and key spare parts. Until now, they have developed industry-leading
3D fifive-axis bevel cutting, P30 ultra-high-power autofocus cutting head, four intelligent digital chucks, Alpha T
and HSG-X9000 bus system and HSG-XMT multi-touch operating system.
Large Variety in Fiber Laser MachinesHSG Laser can serve global users with 20+ kinds of machines that are suitable for most materials needing to
be cut, including sheet metal laser cutting machine, sheet & tube laser cutting machine, tube metal laser
cutting machine, bending machine, welding machine and automation equipment.

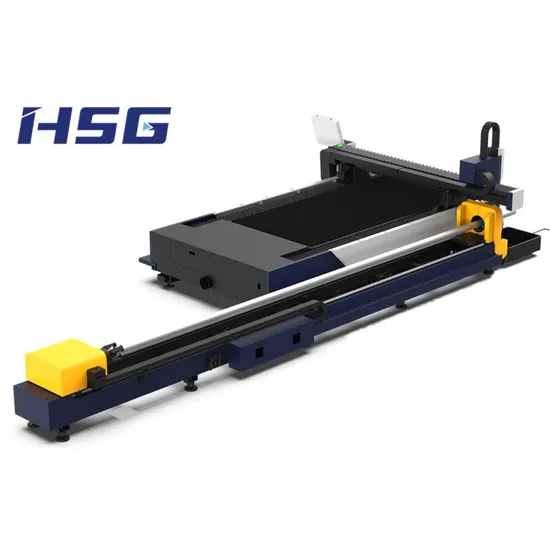

Compact-size Single Platform Sheet and Tube Laser Cutting Machine 1500W-6000W


Product Description
< Compact Size >

GB has single platform and its size is only 8400*3150mm (G3015B). The machine is open-structured and
its work process is visible. Materials are loaded from front, left or right side.
< HSG-NEST Nesting Software >

* HSG-NEST is a standard configuration for 4000W+ models and optional for machines below 4000W.

HSG-NEST works as a standalone and network-free software.

Nesting will start instantly after inputting parts graphics, message and sheet size.

Relevant machining reports are also available to be output.


< Alpha A CNC System >
Micro-connection cutting


Active obstacle avoidance


Real-time monitoring of core components


Active reminder of machine maintenance

< Double Pneumatic Chucks >

The chucks are featured by wireless control, one-key clamping and auto centering. The clamping force keeps
constant to clamp heavy tube tightly. Concave supports are also adopted to prop up tube.




Specification

Applications
HSG Fiber Laser Cutting Machines are widely used in Manufacture Billboard, Signs, Advertising, Signage, Metal Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts Nameplates, etc.


Technical Parameter

Model	G3015B-22EQ	G4020B-22EQ	G6020B-22EQ	G6025B-22EQ
Working Area (L*W)	3000mm*1500mm	4000mm*2000mm	6000mm*2000mm	6000mm*2500mm
X/Y Axis Positioning Accuracy	±0.03mm/m
Cutting Capacity of Round Tube	Φ20 - Φ210mm
Cutting Capacity of Square Tube	20*20mm - 150*150mm
Laser Power	1500W-6000W	2000-6000W	3000-6000W
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine.

Sample Display


Certifications


Visit & Exhibition

Test & Packing
QUALITY TESTING EQUIPMENT

Tri-linear coordinates measuring instrument, Machine body leveller, Collimator, Precise height measuring instrument,
Guide rails straightness meter, Laser interferometer.


HIGH-STANDARD PACKAGE

To keep entire machine safe during long-distance sea transport, we adopt high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic fifilm and fifilling foam.





PROFESSIONAL AFTER-SALES SERVICE


Δ One-year Warranty

All unit components are warranted for 1-year, except items listed in the Exclusions section below.
Our after-sales engineer or local agent will supply new or remanufactured component of equal or better quality to replace the failed one.

Δ Exclusions

Unit components subjected to normal wear during the Warranty Period are not covered by warranty, including:

1. Nozzle 2. Protective lens 3. Ceramic ring

Machine breakdown caused by part handling/misuse or corrosion due to exposure to caustic materials, voids the warranty.

Component failure caused by customer misuse/abuse of the unit (e.g. using incompatible materials or wrong axial position settings), voids the warranty.

---
