Product Description
Product Description
ER-TS-4296 Features:
1. Biaxial tilt monitoring;
2. Input voltage DC 9~36V;
3. Full range accuracy 0.1°, resolution 0.01°.

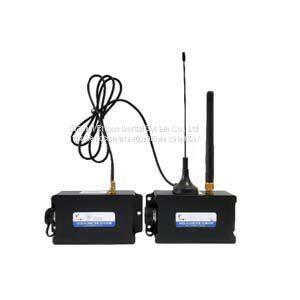

ER-TS-4296 is a high-performance tilt meter based on Bluetooth and ZigBee (optional) wireless transmission technology. Its measurement range is 0~±90°, accuracy: 0.1, resolution: 0.01°. It is suitable for safety monitoring systems in industrial fields, construction and civil engineering.
The wireless digital signal transmission method is compact in structure, small in size, and simple to use, which eliminates the cumbersome wiring and noise interference caused by long cable transmission. The wireless sensor has the characteristics of industrial-grade design, strong measurement accuracy and strong anti-interference ability. It can form a huge wireless network to support thousands of measurement points for simultaneous tilt angle monitoring, and support professional computer software for real-time data measurement and recording.
Features
Biaxial tilt monitoring
Full range accuracy 0.1°, resolution 0.01°
Industrial grade design
Input voltage DC 9~36V
Wide temperature working -40~+85℃
Range 0~±90°(optional)
High vibration resistance & GT; 3500 g
The baud rate is adjustable from 2400~115200
IP67 protection level
Wireless transmission mode: Bluetooth, ZigBee optional
Small volume (107*55*27mm) (customizable)
Applications
Gimp leveling
Medical equipment
Aerial work vehicle
Tilt based monitoring
Hydraulic lifting platform
Bridge dam, building monitoring
Satellite solar antenna positioning
Mining machinery, oil logging equipment
Various construction machinery angle control
High voltage power line tower pole monitoring
>>
