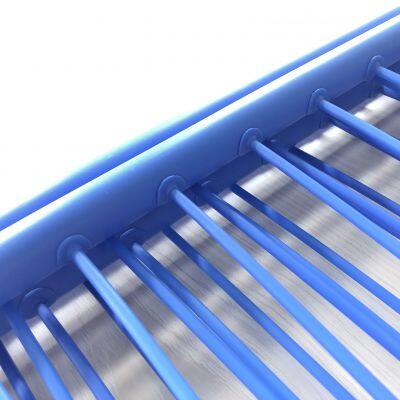

Radiant Cooling Ceiling with Water Hydronic Capillary Tube Mats
Product Description
For COOLING purposes, SINOLANC Capillary Tube Mats are preferentially installed either in or on the ceiling; in this case the surface temperature of the ceiling is, depending on the supply temperature, approx. 19 °C at only 2 to 3 K spreading between supply and return (supply temperature = usually 16 °C; return temperature = 18 °C or 19 °C). Depending on the type of ceiling or the way the capillary tubemats are installed, cooling capacities of up to 100 W/m² (Δ=10 K) can be achieved for closed radiant cooling ceilings.
Sinolanc Capillary Tube Mats Parameters:
Product
| Capillary Tube Mat
|
Material
| PP-R
|
Material features
| light, soft, high temperature and pressure resistance, corrosion resistance, long service life and highly recyclable
|
Collector pipe size
| 20*2.0 mm
|
Capillary tube size
| 4.3*0.8 mm
|
Capillary tube spacing
| 10mm, 20mm, 40mm, Z20mm, Z40mm
|
Length
| 600mm - 12,000 mm
|
Width
| 480mm, 500mm, 550mm, 1000mm
|
Weight
| 290~870 g/m2
|
Water contents
| 0.16~0.57 l/ m2
|
Total weight with water
| 320~1440 g/m2
|
Connection method
| By thermal welding.
|
Test pressure before delivery
| 20 bar max
|
Operating pressure
| 3 to 4 bar normal
|
Type of delivery
| The mats are supplied rolled-up, packed in cartons
|
Filed of application
| Plaster ceilings, radiant heating systems embedded in plaster or screed
|
Advantages:
Energy-efficient
| Its water inlet temperature only 28~32℃ used for heating in the winter.
It is considerably belowfloor heating tube 45-60℃ and traditional radiator 70~80℃.
Comparing to common floor heating and radiator, the sinolanc capillary tube mat can reach energy-saving 20~30% and 40%.
When it is used for cooling in the summer, its water inlet temperature require 16~18℃, much higher than the ordinary air conditioning unit 5-7℃.The energy-saving effect is higher 60~70% than conventional air conditioning system.
|
Save space, Reduce the load
| The thickness of capillary tube mat installation about 10mm, water filling weight about 750g/m2.
For example: a 20 floors of building with traditional central air conditioning, If use sinolanc capillary tube mat.Instead of traditional type will save two layers of space and produced great economic benefits.
|
Widely Energy Selection
| Capillary tube mat can work together with air source heat pump, water source heat pump, ground source heat pump, solar energy, etc.
|
Heath and Comfortable
| Capillary tube mat is achieved cooling and heating transfer by the way of planar radiation.
Due to its great heat exchange surface area, the air conditioning system thermal inertia of small, no noise, no wind, no need to wash, without the risk of bacterial growth and spread, radiation.etc.
|
Convenient Installation
| The diameter of sinolanc capillary tube mat is only 4.3mm. It can be hidden installed in wall, ground and ceiling. It does not take up space in the room, convenient installation and has little influence on interior decoration.
|
Safe and Reliable
| Each piece of capillary tube mat must be through the pressure test of 20 bar before delivery.
Quality is reliable and the service life for 50 years. It is through professional design and installation to ensure that the system operates stably, no maintenance costs.
|
Extensive Application
| Sinolanc capillary tube mat not only can be used as the air conditioning terminal product and also can be used as energy collection terminal.
|
Production Process
Our Services
1. We are the verified first and largest manufacturer of capillary mats with a tradition of over 15 years
2. We use only the best quality PPR raw material with more outstanding performance!
3. All the sinolanc mats are produced on special advanced machines in strict accordance with quality standards and high precision and safety.Every working step in the manufacturing process is monitored and recorded
4. Sinolanc mats have exported to 50 countries and established distributors in some European countries
and working with experienced installers can provide efficient technical and construction support overseas.
Such as Poland, Germany, Romania, Australia, Slovakia, AuLatvia, Lithuania, Netherlands, Switzerland, Italy, etc.
1.24 hours online service
2.Professional foreign sales staff gives you best service
3. Free samples are provided to you, only the shipping freight collect.
4.We follow the orders all the time to ensure your profits.
>>
