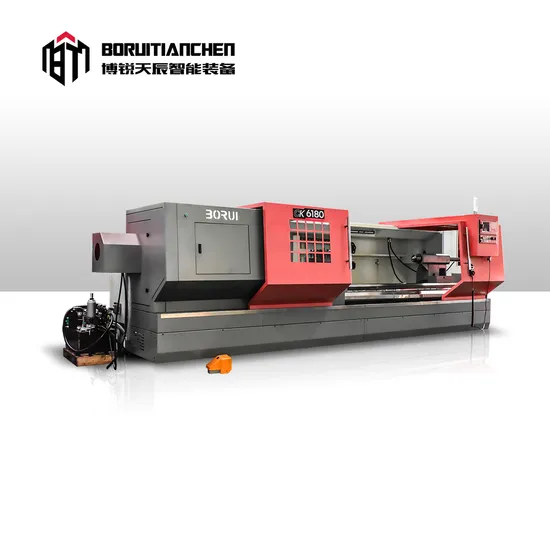

China CNC Lathe Machine Flat Bed Universal Lathe Machine Horizontal CNC Lathe Machine Metal Lathe Machine CNC Ck6180

Product Description

Product Parameters

Type	CK6180
The Scope Of Work
Max. Swing over bed	800mm
Max.Swing over cross slide	470mm
X-axis travel	480mm
Z-axis travel	1620mm/2210mm/3120mm
Bed Frame
Guideway width	600mm
Distance between centers	1500/2000/3000mm
Spindle
Spindle bore taper	Metric 1;20
Spindle taper	C11
Spindle bore	100mm
Spindle speed (manual.3steps)	40-125;110-350;290-950r/m
Spindle motor power	11kw
Chuck	400/3-jaw manual
Servo Axis
X-axis screw	3206
Z-axis screw	6310
Working Precision
Rapid feed rate	X-axis 8000mm/min
	Z-axis 6000mm/min
Positioning accuracy	X-axis 0.01mm
	Z-axis 0.01mm
Repeatability	X-axis 0.0075mm
	Z-axis 0.01mm
Roundness	≤0.007mm
Diameter consistency	≤0.03mm/length 300mm
Flatness	≤0.02mm/diameter 300mm
Surface roughness (steel parts)	≤Ra 1.6m
Tailstock
Tailstock sleeve diameter	100mm
Tailstock sleeve travel	250mm
Tailstock center taper hole	MT6#
General Specifications
Height from bed foot to spindle center	1000mm
Machine size	5600x2250x2000
Weight	5400kg

our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
FAQ
1:How ca
n I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
