Spool Type Expansion Hose Factory Direct Sales Can Be Customized

Product Description

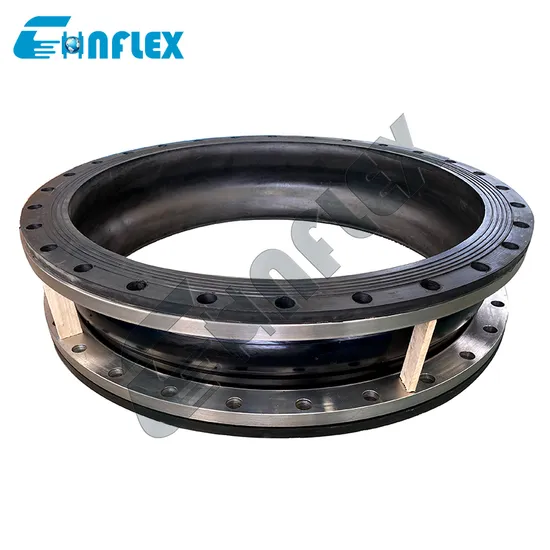

The spool type expansion hose is mainly composed of three parts: rubber joint, flange, and metal rod. Its structural design is reasonable, simple, and easy to install, making it a new type of pipeline connector. Compared with ordinary rubber joints, spool type rubber joints can better adapt to the axial and radial displacement changes of pipelines, and have certain angular displacement and deflection angles. In addition, spool type rubber joints rubber joints can also improve the load-bearing capacity of pipelines by increasing the thickness of the connecting flange.

NO	Name	Material
1	Flange	Q235,SS304,SS316,PVC
2	Inner/outer rubber	NR,NBR,EPDM,FKM,PTEF,IIR,CR
3	Reinforcing cord	Nylon Tire Cord
4	The rod	Carbon steel,Ductile iron,Stainless steel

The spool type expansion hose has excellent physical properties:
1.Pressure resistance, corrosion resistance, high temperature resistance, oil resistance, able to adapt to various complex working environments.
2.Shock absorption and noise reduction effectively block the propagation of sound, reducing vibration and noise in pipeline systems.
3.Good sealing performance, using high-quality rubber materials and high-strength metal structures to ensure tight connections and prevent medium leakage.Product Specification

Size		Length	Allowable Movements in Operation
mm	inch	mm	Axial Compression mm	Axial Extension mm	Transverse Movement mm	Angular Deflection mm
32	1 1/4	95	15	10	12	15°
40	1 1/2	95	15	10	12	15°
50	2	105	15	10	12	15°
65	2 1/2	115	15	10	15	15°
80	3	135	15	10	15	15°
100	4	150	20	12	15	15°
125	5	165	20	12	15	15°
150	6	180	20	12	15	15°
200	8	210	25	16	20	15°
250	10	230	25	16	20	15°
300	12	245	25	16	20	15°
350	14	255	25	16	20	15°
400	16	255	25	16	20	15°
450	18	255	25	16	20	15°
500	20	255	25	16	20	15°
600	24	260	25	16	20	15°
700	28	260	25	16	20	15°
800	32	260	25	16	20	15°
900	36	260	25	16	20	15°
1000	40	260	26	18	20	15°

Note: If the medium is oil, acidic or alkaline substances, and there are special requirements for the working temperature, you can customize it by sending a letter or drawing. Please specify when ordering.
Product Details
Production Flow

1.Raw material Top level CR/EPDM/NBR rubber raw materials,No recycled rubber

2.Plasticating and mixing Special Formulation for better Bending with Nylon,For Better Strength,Sealing

3.Workblanks wraping Cooper plated steel wire reinforcement prevent pull off

4.Vulcanizing Automatic vulcanization machine ensure vulcanization time and pressure

5.Inspecting 100% strict inspection is to be responsible for consumers

PackagingProtective Packaging for No Rust and Breakage

Application
Spool type expansion hose can be widely used in water supply and drainage, circulating water, HVAC, fire protection, paper making, pharmaceutical, petrochemical, ship, pump, compressor, fan and other pipeline systems. The ordinary type is used to transport air, compressed air, water, seawater, oil, acid, alkali, etc. ranging from -15 to 115. Special rubber flexible joints are used for conveying media or oils, concentrated acids and alkalis, and solid materials above -30 to 250.
Our Services 1.24-hour online
2.Free samples provided
3.Support customization
4.Provide drawings
5.Multiple payment styles to choose from
6.Factory inspection (material, specifications, quantity, pressure, packaging)
7.Long warranty period
8.Suitable packaging for transportation
Our Customer
Certifications
FAQQ1:What's the material of spool type expansion hose?
A1:The material can be EPDM,NBR,CR,SBR..It depends on the working condition.
Q2:What's the working pressure?
A2:The working pressure can be 1.0Mpa, 1.6Mpa, 2.5Mpa.
Q3:What's the package?
A3:The packaging consists of cardboard boxes and sturdy plywood boxes.
Q4:Can we get a sample?
A4:Yes,we could provide samples for you to test the quality.

---
