Stainless Steel Automatic Fuel Measuring Tools with Smart Console for Gas Station

Product Description

Product Description Gas station automatic fuel measuring tool are used for monitoring fuel level, water level and temperature inside fuel storage tanks. It is widely used at fuel station and skid-mounted fueling site.

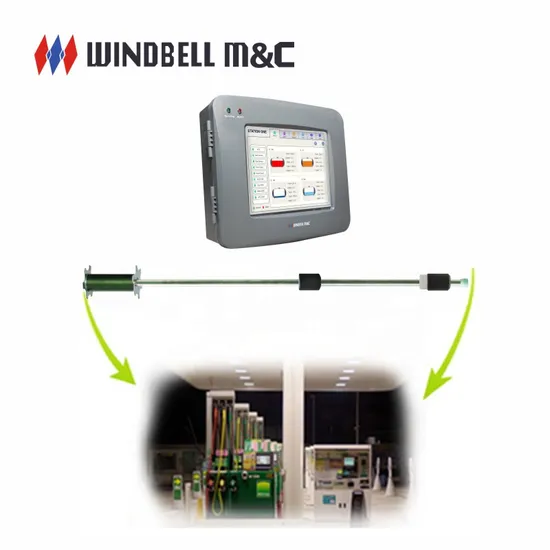

It is composed of SS series smart console and SP series magnetostrictive probe, and has the advantages of Automatic Measurement, Scientific Management, Security Monitoring, Data Sharing, etc. At the same time, windbell also provides you with Free Mobile APP.
The tank gauge console is the display terminal of the automatic tank gauge and can detect up to 32 tanks at the same time. It can monitor fuel level, water level, temperature, product volume, water volume, empty volume, all kinds of alarms, inventory and delivery information in real time.
SP300 Magnetostrictive probe is mainly composed of probe head, temperature sensors, protection steel pipe, magnetostrictive waveguide wire and floaters with magnet inside. Insert probe into underground tank, floaters float on the liquid surface, and slides up and down on rod according to the changes of liquid level. Processing measured data of product level, water level, density values (option), and average temperature of five-points, then transmit these data to smart console by digital communication port.
Product Advantage International graphical touch screen and user-friendly icons, easy to use. Monitor up to 32 tanks, and display fuel level, water level, volume, density and temperature for individual tanks. Monitor up to 64 leak detection sensors, which can be used for leak monitoring of tank interstice, pipe interstice, tank sump, dispenser sump and so on. Support multiple functional expansion, can simultaneously carry on level monitoring, leak detection, combustible gas detection, vapor recovery online monitoring, and static grounding detection. Support a variety of sensor types: float type, optical type, pressure type, liquid medium type and so on. Automatic sound-light alarm, support external sound-light alarm and voice alarm. Generates various reports, include delivery report, inventory report, alarm report, leak report and so on. Support tank table generation, correction, input, import and export. Support TCP/IP, remote data query on mobile and PC. Three-level security password management. Free switching between Chinese, English and other languages. Open networking protocol, which can be connected with the central control system of domestic mainstream petroleum equipment manufacturers, fully satisfying the petroleum company's demand for refined oil retail management. External GSM/GPRS module (optional). Built-in WIFI function (optional). Built-in printer (optional). ATEX, EAC, CQST, SIL approved. Applied in Gasoline, Kerosene, Diesel, Ethanol gasoline, Methanol gasoline, Approved light oil. Length customized production. Product Parameters

Model	WB-SS200B Smart Console
Power	AC90 ~ 276V, 47-440HZ
Working temperature	-20ºC to 60ºC (-4ºF to 140ºF)
Display	12-inch color touch screen
Ex-proof grade	[EX ia Ga] IIB
Safety barrier	GSB06
Relay output	2 groups
External extension anti-overfill valve console	WB-DFV100
External extension submersible pump console	EM02
Output voltage	DC 12V
Monitor probes	8, Up to 32
Leak sensor	Optional
SMS module	Optional
GPRS module	Optional
Built-in printer	Optional
WIFI function	Optional
External sound-light alarm	Optional
External printer	Support
Running/Alarm indicator	Yes
Inventory and delivery management	Yes
Density and mass measurement	Yes
RS485 port	1
RS232 port	2
USB port	1
Ethernet port	1
Buzzer alarm	Yes
Tank table	Yes, simulate/input/import/export
Reports	Inventory, delivery, shift, alarm, leak detection test, system log, SMS for optional
PC remote software	PCR200
Anti-theft function	Yes
Dimension (L*W*H)	42*36*16cm
Model	WB-SP300 Series Magnetostrictive Probe
Precision	±0.5mm
Repeatability	±0.1mm
Resolution of fuel level	0.01mm
Resolution of water level	0.01mm
Points of TEMP. measured	5
Resolution of temperature	0.0625ºC
Accuracy of density measurement	+/-1kg/m³
Density measure range	700-780kg/m³, 810-890kg/m³
Communication mode	RS485
Maximum communication distance	1200m
Communication cable	4-core shielded cable
Rated working pressure of probe	1.6MPa
Material	316L stainless steel
Protection grade	IP68
Operating temperature range	-40ºC~60ºC (-40ºF to 140ºF)
Mark of explosion proof	Ex ia IIA T4 Ga, Ex II 1G Ex ia IIA T4 Ga
Associated apparatus	WB-GSB03, GSB06, GSB08 safety barrier
Definition of power cable	BLUE: POWER+, BROWN: RS485A, WHITE: RS485B, BLACK: POWER-
Applicable medium	Gasoline, Kerosene, Diesel, Ethanol gasoline, Methanol gasoline, Approved light oil
Installation method	Flange type, Threaded type
Reliability	Anti electromagnetic interference, anti surge
Dimension (L*W*H)	185*12*12cm (Can be customized)
Model	SM300 Wireless Data Transmitter
Emission frequency	470-510MHz
Transmit power	≤21dBm
Transmission rate	≤ 62.5 kbps
Charging cycle	8-10 months
Wireless communication distance (sight distance)	500m
Working temperature	-40ºC to +70ºC
Ex-proof grade	Ex ib IIA T4 Gb
Protection grade	IP68
