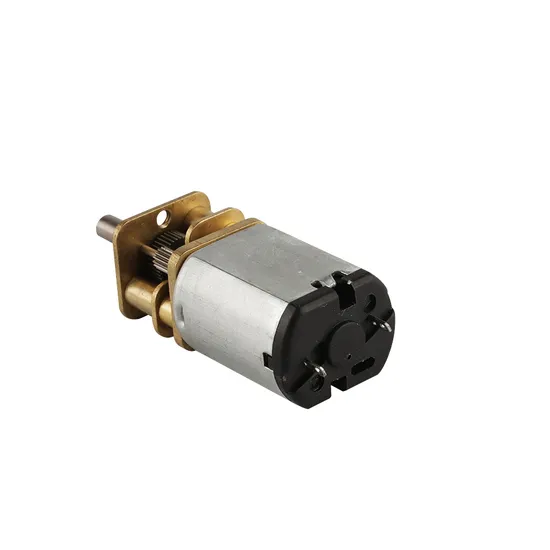

6V 9V 12V 12mm N20 High Torque Low Speed Mini Brushed DC Gear Motor

US$4.00
10-99 Pieces
US$3.20
100-999 Pieces
US$2.86
1,000+ Pieces

Basic Info.

Model NO.
n20
Excitation Mode
Excited
Function
Driving
Casing Protection
Open Type
Number of Poles
2
Structure and Working Principle
Brush
Type
Z2
Certification
RoHS
Brand
Xinhe Motor
Gear
Spur Gear Motor
Brush
Metal/Carbon Brush
Diameter
12mm
Voltage
3V~12V
Speed
10~3000rpm
Power
0.2~1W
Ratio
10:1~1000:1
Rosh
Yes
CE
Yes
Noise
Less Than 35dB
Encoder
12PPR
Weight
0.1kg
Packing
Carton & Styrofoam
Lead Time
25days
Payment Term
Tt
Transport Package
Cartons
Trademark
XINHE MOTOR
Origin
China
HS Code
8501109990
Production Capacity
20000/Month

Product Description

Product Description High Power version with 1.6A stall current:1.6A
With 12CPR without encoder ;
With back shaft or not.
With metal brush or carbon brush
Model Voltage
Unit: VDC		 No load speed
Unit: rpm		 Noload current
Unit: mA		 Stall torque
Unit: kg.cm		 Gear ratio
N20H5 6V/12V 6000 rpm 120/60mA 0.1 kg.cm 5:1
N20H10 6V/12V 3000 rpm 120/60mA 0.2 kg.cm 10:1
N20H20 6V/12V 1500 rpm 120/60mA 0.4 kg.cm 20:1
N20H30 6V/12V 1000 rpm 120/60mA 0.6 kg.cm 30:1
N20H50 6V/12V 625 rpm 120/60mA 1.0 kg.cm 50:1
N20H75 6V/12V 400 rpm 120/60mA 1.5 kg.cm 75:1
N20H100 6V/12V 320 rpm 120/60mA 2.0 kg.cm 100:1
N20H150 6V/12V 200 rpm 120/60mA 3.0 kg.cm 150:1
N20H210 6V/12V 140 rpm 120/60mA 3.6 kg.cm 210:1
N20H250 6V/12V 120 rpm 120/60mA 4.2 kg.cm 250:1
N20H298 6V/12V 100 rpm 120/60mA 5.0 kg.cm 298:1
N20H380 6V/12V 78 rpm 120/60mA 6.3 kg.cm 380:1
N20H1000 6V/12V 32 rpm 120/60mA 9.0 kg.cm 1000:1
