US$4,000.00-5,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Applicable Material
Nonmetal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
CO2 Laser
Laser Classification
Gaseous Laser
Type
CO2 Laser Marking Machine
Marking Method
Scanning Marking
Marking Area
110*110mm, 175*175mm, 220*220mm, 300*300mm
Max Single Pulse Energy
1.0mj
Laser Beam Quality M2
<1.2
Application Material
0.1-2mm
Process Material
Metal and Some Non-Metal
Lifespan
Over 20, 000hours
Graphic Format
JPG, BMP, Dxf, Plt, Ai, Dst
Control Software
Ezcad Software
Marking Depth
0.01-0.08mm
Transport Package
Standard Plywood Packing for Export
Specification
1650X1250X1050MM
Production Capacity
600sets/Month
Product Description

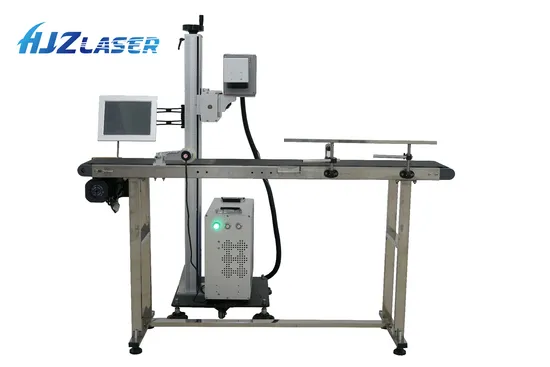

CO2 Laser Marking Machine for Flying Online Expire Date HDPE/Plastic Water Bottle
Customized machine for customers:
If you have special requirement please contact us, we will work together to find a best solution for you!
Our Features:
1.United States imported CO2 laser tube,
2.SINO-GALVO galvo head with speed 7000mm,
3.Imported lens made of zinc selenide,
4.Machine warranty for 2 years,
5.Top quality JCZ motherboard and EZCAD control software,
6.Taiwan MeanWell brand power supply,
7.We support DHL / TNT / FEDEX EXPRESS air shipping to door,
Applicable material:
Wood, paper, leather,cloth, plexiglass, epoxy, acrylic, unsaturated polyester resin and other non-metal materials.
Control software:
-EZCAD software( The latest version of EZCAD)
-Easy to use, smooth operation
-Support WIN XP, WIN7, WIN 8, WIN10 (32bit/64bit)
-Support multiple formats AI, PLT, DXF, BMP, DST, DWG, LAS, JPG, DXP,etc.
techical parameters:
| Model | HJZ-CDB-30 |
| Laser source | US SYNRAD |
| Laser type | Co2 laser |
| Wavelength | 10.6um |
| Max Single pulse energy | 1.0mj |
| Pulse duration | 90-130ns |
| Laser beam quality M2 | <1.2 |
| Marking speed | 1-8000mm/s |
| Frequency | 20-60khz |
| Marking Area | 100*100mm-300*300mm (optional) |
| Marking Depth | 0.01-0.08mm |
| Controller | Computer with marking software |
| Control program | EZCAD control system Compatible with win7/8/10 |
| Graphic format supported | JPG,BMP,DXF,PLT,AI,DST |
| Working voltage | AC220V 50HZ, AC110V 60HZ |
| Cooling type | Air cooling |
| Operating parameter | 0-40ºC |
| Warranty | Laser source we warranty for 1 year/the other parts warranty for 2 years |
| G.W. | 90KG |
| Package(L*W*H) | 1090X460X780mm |
Packing list:
| 30W CO2 laser marking machine | 1 set |
| Laser source test report | 1 set |
| CD with EZCAD control program | 1 set |
| Foot switch | 1 set |
| USB flash disk | 1 set |
| Power cord | 1 set |
| Inner hexagon wrench | 1 set |
| Ruler | 1 set |
