Good price Precision MY4080 High quality hydraulic surface grinding machine for sale

Product Description

Good price Precision MY4080 High quality hydraulic surface grinding machine for sale
Product Description
Product Parameters
Product main technical parameters:

Specifications							Units	MY4080
workbench	Worktable size (L * W)						mm	800×400
	Max. travel of table						mm	900×480
	Table T slot (slot number x slot width)						mm	3×14
Grinding head	The grinding wheel size (o. d * w * i. d.)						mm	Φ355×40×Φ127
	Distance spindle center line to working table						mm	600
	Grinding wheel speed					50HZ	r/min	1450
						60HZ	r/min	1680
The amount of feed	Table longitudinal (left and right)0 speed						m/min	3-25
	Transverse (front and rear) feed handwheel feed			Continuous (stepless)			mm/min	240
				Intermittent (stepless)			mm/times	0-8
				Handwheel per turn			mm	5.0
				Handwheel per lattice			mm	0.02
	The vertical (up and down) feed handwheel feed				Handwheel per turn		mm	0.8(1.0)
					Handwheel per lattice		mm	0.01
	Grinding head up and down is fast lifting speed (approximate value)						mm/min	1000
Motor power		Spindle motor					Kw*P	4*4
		Cooling motor					W	125
		Elevator motor					W	180
		Hydraulic motor					KW*P	2.2*6
working accuracy	The process surface of the base level of the parallel degree						mm	300:0.005
	Surface roughness						μm	Ra0.4
Machine weight			Net weight				kg	2800
			Gross weight				kg	3200
External size (L * w * h)							mm	2550×1650×2200

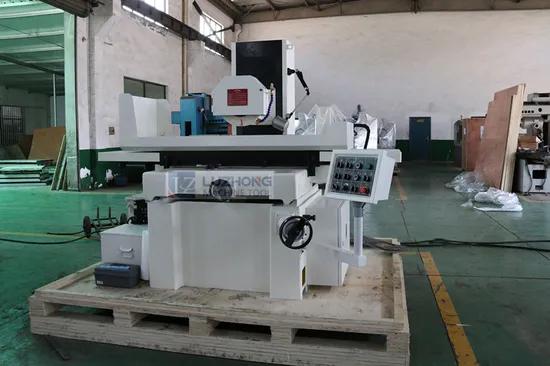

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
