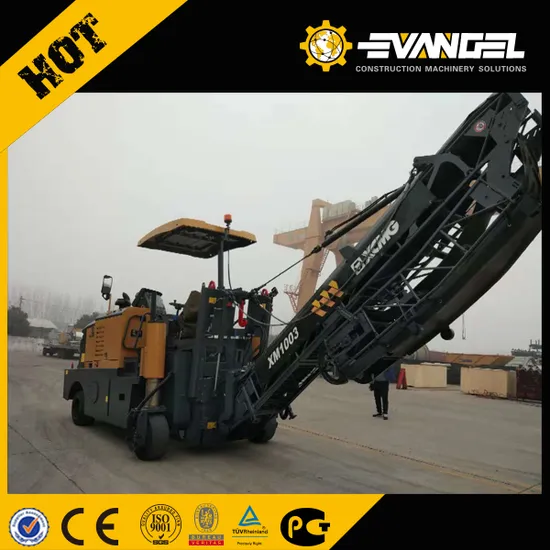

1m Cold Milling Machine Xm1003 Asphalt Milling Machine for Sale

Product Description

1m cold milling machine construction road asphalt milling machine

XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.

Model		XM100	XM101	XM130	XM200
	Max. milled width (mm)	1020	1020	1300	2000
	Max. milled depth (mm)	120	120	250	320
Milling Drum	Milled frum tools	84	84	112	168
	Drum diameter (mm)	660	660	860	980
Engine	Model	YC6108ZG	D6114ZGB	C6121ZLG	BF8M1015
	Rated power (KW/HP)	115/154	125/170	160/215	419/570
	Rated speed (rpm)	2200	2200	2200	2100
Specifications	Operating speed (m/min)	0~13	0~13	0~30	0~30
	Travel speed (km/h)	0~13	0~13	0~7	0~5
	Gradeability (%)	≥ 20	≥ 20	50	100
	Min. turning radium (m)	5	5	5	2.6
	Ground clearance (mm)	120	120	120	300
	Operating weight (kg)	13000	14500	18000	31000
Volume	Fuel tank (L)	180	180	280	1320
	Hydraulic oil tank (L)	150	150	160	400
	Water tank (L)	350	350	780	3430
Conveyor	Width (mm)		400	600	800
Measurement	Overall machinery (L× W× H) (mm)	4522× 2218× 2804	4522× 2218× 2804	4525× 2130× 2895	7100× 2500× 3000
	Conveyor (L× W× H) (mm)		5640× 700× 610	7020× 940× 760	8000× 1150× 1500
Travel mode		Tire	Tire	Tire	Track

---
