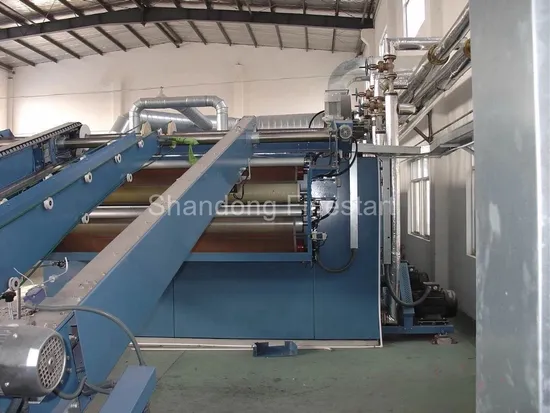

Tubular Textile Machine / Loose Dryer / Tensionless Dryer

Product Description

Introduction
The drying machine is used for drying cylinder and open-width fabric with three-layer belt. Because of circulating drying and run under different speed, the fabric could keep in loosen circumstance without any tension during the drying process.
We provide corresponding machine according to different types of fabric to meet your requirements totally.
Based on the different width of belt, we could supply different models as following:
FSHG-2000mm/2400mm/2800mm/3200mm(standard)/3600 mm
Based on the different heat sources, we could supply the following models with six heating methods:
1. Steam (0.8MPa) 2. Steam (2.8MPa) 3. Heat conduction oil 4.Gas (direct combustion) 5. Gas (indirectly) 6. Biofuels
Our machines are equipped with conveyor belt made of Teflon material, it could bear high temperature and not pollute the fabric with non-staining.
Design Drawing
Typical Products Information
Basic Info

Model	FSHG2800
Name	Relax Dryer
Application	Drying the fabric,eliminating exceeding water and achieving the natural moisture content of the fabric
Suitable Fabric	knitted and Woven Fabric

Technical Dates

Max. Working Width	2400mm
Machine Speed	0-50m/min
Chamber Nos	4 Sets
Power Supply	380V·3P·50HZ
Weight of Machine	≈24.5T
Working Type	Three-layor net belt cycling
Net Belt Type	Glass fiber with PTFE coated
Driving Type for net belt	PLC+Inverter control
Heat-setting Type	Natural Gas heating hot air circulating
Max Drying Temperature	160ºC
Temp. control type	Automatically regulate two chambers temperature as one section
Length of Chamber	2.1M
Thickness of Insulation Board	105mm
Machine Dimension	L=12500mm W=4500mm H=3400mm

Cost & Consumption

No	Item	Max.Temp	Specification	Consumption
1	Natural Gas	160ºC	P≈2Kpa - 3.5Kpa / 35544KJ /(8500KCal)/m³	8-13m3/H·Chamber(6.5-10.5kg)
Electricity
No	Item	Specification		Consumption
1	Chamber	blower motor etc		22KW/section
2	Main Driving & Control	Motor etc		16.5KW
Total Power				94.5KW
Working Consumption				≈40KW
Compressed Air source
No	Item	Specification		Consumption
1	Compressed Air	0.35-0.6Mpa clean compressed air		/

Other Products and Technology
Production Line
Payment Terms:
Payment Conditions: 30% down payment by T/T and the balance payment should be T/T or in irrevocable L/C at sight.
Delivery time: 30-60 days from the date of receiving down payment. All payment should be received before delivery in China.

Any questions and requirments,contact us now!
Mobile: +86 15063352256

---
